| US$11,000.00 | 1 Set (MOQ) |

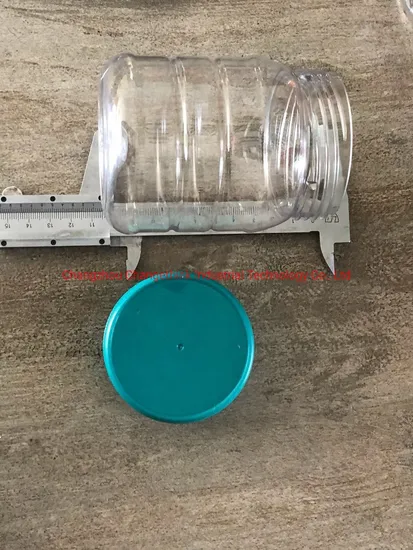

| Picture | (just for your reference ) | |
| Specification | Hot runner cap mould Ф71 | |
| Cavities | 6 | |
| Mould frame material | P20 steel hardness P20 | |
| Core,cavity material , | S136 | |
| Heater ring | ROTFIL in Italy ROTFIL | |
| Runner structure | base runner | 2 points(2) |
| subchannel | 6 points (6) | |
| enter runner | 1 gate (1) | |
| Temperature controller | Insert card type hot runner temperature coneroller | |
| Mold outline size (mm) | About 650×500×460 mm | |
| Mould weight | About 930kg | |
| Clamping force | 2000KN | |
| Guarantee period | 1 year | |
| Mould life | More than 1 million shot injection times 100 | |
| Cycle times | About 18-20S | |
| Delivery time | 60 days after the drawing and sum be confirmed 60 | |
| Payment terms | 40% pay in advance, the last 60% pay before delivery | |
| Packaging requirement | standard export packaging. | |
