Industrial Electric Screw Conveyor Material Conveyor System

Product Description

Industrial Electric Screw Conveyor Material Conveyor System Main Technical Data:

Model No.	TDLG-2	TDLG-3	TDLG-5	TDLG-7	TDLG-8	TDLG-12
Charging Capacity	2cbm/h	3cbm/h	5cbm/h	7cbm/h	8cbm/h	12cbm/h
Diameter of Pipe	φ102mm	φ114mm	φ141mm	φ159mm	φ168mm	φ219mm
Total Power	0.58KW	0.78KW	1.53KW	2.23KW	2.23KW	3.03KW
Total Weight	100kg	130kg	170kg	200kg	220kg	270kg
Hopper Volume	100L	200L	200L	200L	200L	200L
Pitch	76mm	80mm	100mm	110mm	120mm	180mm
Dia. of Axis	φ32mm	φ32mm	φ42mm	φ48mm	φ48mm	φ57mm

FAQ:
1. Manufacturer or trading company : Manufacturer
2. Location : Songjiang district , Shanghai
3. Selling markets: Europe, American, Australia, Asia, Africa
4. Customized: Available for customized designs
5. Delivery time: 15 - 30days
6. Warranty period: 1 year
Product Description:

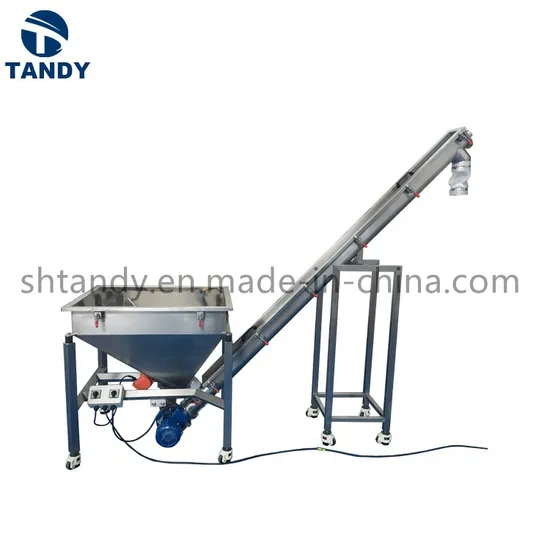

TDLG series screw elevator (also calling auger conveyor) transmit the powder of granule material to hopper automatic; it can be completed with mixer and packing special equipment. It is made from stainless steel; without any contamination during conveying materials. The production program is under totally enclosed and automatic. Character: safe and convenient and moveable. For example some mixer work in one same material, it only need one angle elevator for filling; without manual filling problem; it is more safe, less time, less worker for filling.
Product another calling: screw auto conveyor; auger auto conveyor, auto conveyor, elevator.
More Pictures Show:
Packaging & Shipping:
Company Information:
Our Exhibition:
Service:

---
