Product Details
Product Description
Product Description
Features:
1. High quality laser source (Standard: Fiber Laser ; Customize: CO2 Laser / UV laser) combined with high transparency coated field lens and intelligent red light positioning systems.It provide high positioning accuracy and make the identification more high-quality.
2. High precision control of the beam can not only adapt to various high-density materials,but also create high-precision patterns, maintaining the artistry and integrity of the product.

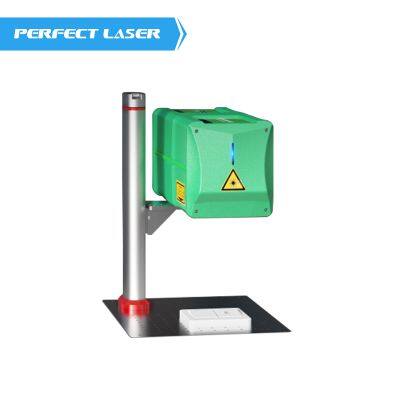

3. The small laser marking machine has small and integrated body design, small size, light weight, good stability, strong comprehensiveness, and more flexible production line integration.
4. The small laser marking machine has an independently developed intelligent touch screen control system, combined with high intelligence core chips,that operates reliably and smoothly.It’s simple and easy to use, supporting mobile phone/computer operation.
5. Adopting high-speed galvanometer technology, the marking speed can reach up to 12000mm/s, with high efficiency, and can quickly process large amounts of data and complex images.
6. The high transparency coating field mirror provides a super large field of view, expands the marking range, and a smaller marking head, which will conveniently elevate it to another level.
7. Cooperate with Perfect laser traceability system to easily track the whereabouts of products and improve product safety.
Technical Data:
Product Name
| Mini Integrated Multifunctional Laser Marking Machine
|
Model
| PEDB-100
|
Laser Type
| Fiber laser
| CO2 laser
| UV laser
|
Output Power
| 20W
| 30W
| ≥30W
| ≥3W
| ≥5W
|
Laser Wavelength
| 1064nm
| 10600nm
| 10200nm
| 9300nm
| 355nm
|
Marking Range
| Standard:
110mm×110mm
Optional maximum
range:300mm x300mm
| Standard:
90mm×90mm
Optional maximum
range:450mm x450mm
| Standard:
110mm×110mm
Optional maximum
range:175mm x175mm
|
Maximum Power Consumption
| 300W
| ≤800W
| ≤700W（400W+300W)
|
Net Weight of Machine (Host)
| 6.6kg
| 13.3kg
| 12.2kg
|
Optical Path Size
| 436mmX163mmX178mm
(L×W×H)
| 587mmX186mmX170mm (L×W×H)
|
Cooling System
| Normal temperature air cooling
| water-cooling
|
Marking Line Type
| Dot matrix and vector integrated machine (can do both dot matrix and vector printing)
|
Reflector Size
| Standard configuration:10mm
|
Targeting
| With red light positioning and focusing
|
Number of Lines of Characters to be Engraved
| Any row within the marking range
|
Printing Speed
| 650 characters/second (the specific speed is related to the product material and printing content)
|
Language
| Simplified Chinese, Traditional Chinese, English, Russian, Arabic numerals and other standard fonts
|
File Format
| BMP、DXF、PLT、
|
Bar Code /QR Code
| CODE39、CODE128、EAN13、ISBN、PDF417、ITF-14、QR、DM
|
Power Supply
| 220V
|
Display
| Optional (the monitor supports VGA connection and the resolution is 1366*768)
|
Interface
| USB2.0/photoelectric trigger/signal feedback
|
Pollution Level
| 2
|
Over Voltage Category
| Ⅱ
|
Adapt to Temperature
| 5-40℃
|
>>
