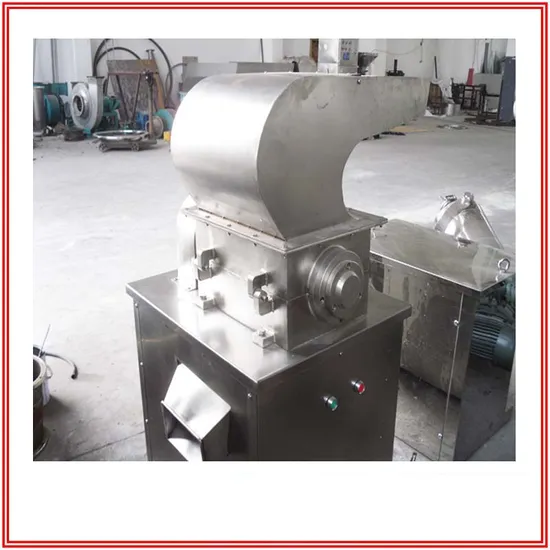

Stainless Steel Coarse Crusher for Block Sugar, Salt, Chemical

US$1,890.00-2,890.00 1 Piece (MOQ)

Basic Info.

Model NO.
CSJ-250
Type
Multi-Use Grinding Machine
Processing Object
Curve
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Grinder
Other Name
Stainless Steel Grinder
Dust Collection
Bag Filter
Mesh Size
10-60mesh
Mesh
Changeable
Transport Package
Wooden Case
Specification
CE, SGS, ISO, GMP
Trademark
CK
Origin
Changzhou
HS Code
8479820090
Production Capacity
500set/ Year

Product Description

Coarse grinder/ crusher/ breaker Application
It applies to pharmaceutical, chemical, food, metallurgy, construction and other industries. Of hard, hard grinding materials processing, including plastic, crushed roots, but also as a pulverizing first procedure of equipment.
Feature
Horizontal structure, the spindle is supported by a rolling bearing, mounted on the shaft 12 knife, the enclosure has a fixed knife, the knife in the cabinet rapid rotation, the material for quick cut, to achieve the purpose of crushing. Material from the hopper into the crushing chamber against the rotating and stationary knives while shear pulverization, the material automatically flows to the discharge port.
The machine uses a horizontal restrictions crushing mechanism, not material viscosity, hardness and the like. Any material can play better crushing effect.
Model
CSJ-250
CSJ-350
capacity(kg/h)
50~300
100~500
discharge size(mm)
0.5~20
0.5~20
main shaft speed(r/min)
400
400
motor power(kw)
4
5.5
weight(kg)
300
500
dimension(mm)
L*W*H
550×500×1100
700×700×1250
