Induction Cap Sealing Machine Sealer Automatic Air Cooled

Product Description

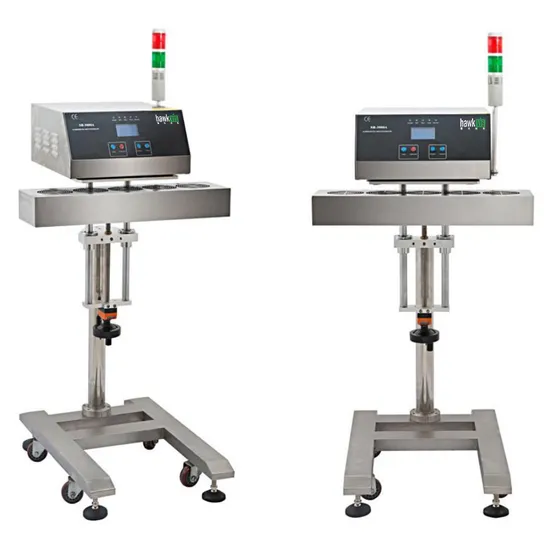

Product Description This air-cooled electromagnetic induction aluminum foil sealing machine is designed for continuous production package of food, medicine & health care, veterinary drugs, chemical, and cosmetics to achieve firm and secured sealing effect of the container or bottle cap closure.
Technical Features The induction generator adopts the latest advanced transistor and CPU module. The induction sensor is equipped with 6 sets of 180ºC copper coil and 5 units of 220V fan cooler (coil quantities depending on the bottle mouth diameter), which produce fast, stable, and perfect sealing effect. High speed and efficient air-cooling system, working 24 hours per day. The main board adopts the transistor modulation design, with least minimum failure rate, and the maintenance is simple in the later stage. EMI technology is adopted for anti-magnetic interference. Moisture, corrosion, dust, and magnetic resistance, minimize maintenance requirements and increase reliability.
Structure & Operation Features All functions are visible on the panel clearly, super easy to operate. Height of induction sensor is adjustable and flexible to suit different bottle heights. With stainless steel enclosure, meet the GMP demand. Mobile design, with 4 universal wheels, easy to move and relocate. Host, stand, sensor head are detachable from main structure, easy to reduce transportation cost. The induction sensor and generator are replaceable from the same model of the machine. Safety Features It has the power supply voltage stabilizing function to generate constant sealing strength. Intelligent alarm and automatic stop on over-heat, over-pressure, over-current, water shortage, water clogging, water temperature over high. It has the function of automatic bottle clogging alarm and provides safety guarantee for inflammable and explosive products (optional function). Product Parameters

Power frequency	AC220V 50/60 Hz (customizable)
Power Output	Max. 3000 W
Cooling Type	Air-cooled
Sealing Speed	Up to 18 meters per min.
Sealing Height	860-1260mm (customizable)
Cap Diameter Range	20 - 80 mm (customizable)
Applicable Caps	All regular flat plastic caps
Applicable Containers	Plastic, Glass
Warranty	First 1-year limited free warranty. From 2nd year till lifetime, paid warranty is available by charging on material and engineer labor cost.

Packaging & Shipping
Wooden Case #1	590*550*310mm
Wooden Case #2	870*820*400mm
Total Weight	55 Kgs

---
