Coating Machine Mixer for Making Artificial Graphite Anode Material of Lithium Battery

Product Description

Coating Machine Mixer for Making Artificial Graphite Anode Material of Lithium Battery Product Description Anode graphite is the biggest part of lithium-ion batteries by weight, but only a small percentage of the cost. Our these coating equipment can be used for making artificial graphite anode material of lithium battery, they mainly include the material measuring tank, heating reactor, cooling reactor, heating furnace, condensation holding tank for end-gas and PLC control system. They are developed by our professional engineers and impoved by our years experience, they can improved the working efficiency, granulation effect and mixing effect, and have been proved they are an excellent coating equipment and widely used in anode graphite industry.
Below are the advantages of our these machines.
1. The material product yield is high, the yield coefficient by our machines usually can up to 95%, but other machines usually is about 80%.
2. The cooling time of material is short, reduce the temperature from high level to 50 ­°C only needs 2.5-3 hours, it saves the energy cost a lot.
3. The automatic level is high, basically realize BUTTON START mode, it saves the labour cost a lot.
4. The waste of material is less, the distance between mixing shafts and wall is about 10mm.
Specification

Volume (L)

Total Power (KW)

Heating Power (KW)

Motor Power of Granulator (KW)

Motor Power of Cooler (KW)

Mixing Speed (R/MIN)

Handling Capacity / Batch KG

Capacity (Day/Times)

Material Cooling Time (H)

Nitrogen (M³/H)

Exhaust Smoke Volume (M³/H)

Cooling Cycle (M³/H)

Yield (%)

Pitch Ratio (%)

100L

43

30

4

3

about 0-80

about 12-16

about 2.5-4

from 600°C to 50°C about 4h

about 0.2-4

about 70

12

about 90-95

about 3-9

2000L

175

130

30

15

about 0-80

about 300-400

about 2.5-4

from 600°C to 50°C about 4h

about 0.2-4

about 500

35

about 90-95

about 3-9

4000L

267

190

55

22

about 0-80

about 650-800

about 2.5-4

from 600°C to 50°C about 4h

about 0.2-4

about 700

50

about 90-95

about 3-9

7000L

385

280

75

30

about 0-80

about 1150-1400

about 2.5-4

from 600°C to 50°C about 4h

about 0.2-4

about 900

60

about 90-95

about 3-9

10KL

485

350

90

45

about 0-80

about 1550-1800

about 2.5-4

from 600°C to 50°C about 4h

about 0.2-4

about 1200

75

about 90-95

about 3-9

Working Process

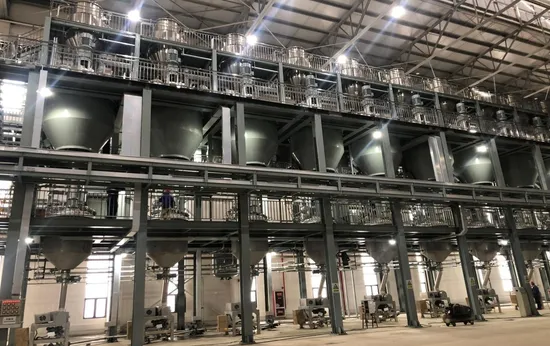

Photo of Workshop Terms of Payment By TT, 40% deposit is paid before production, 60% balance is paid before delivery.
Time of Delivery It depends on the quantity of order, usually between 2-3months.
After Sales Service We can send engineers overseas to assistant with customer for the installation of these machines and training for their workers if necessary.
THANK YOU FOR YOUR READING !
WE LOOK FORWARD TO COOPERATING WITH YOU IN THE NEAR FUTURE !

---
