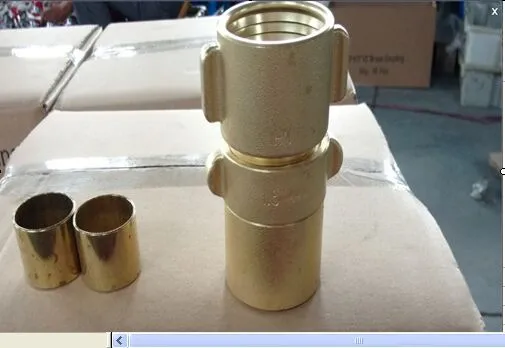

1-1/2" Nh/Nst Fire Hose Couplings Male & Female

Product Description

Male and Female Fire Hose Coupling Description A Fire hose coupling is connector on the end of hose to connect or couple it with another hose or with a tap or hose appliance, such as irrigation sprinkler. It is usually made of steel,brass,stainless steel,aluminium or plastic.Used for combining water band with water band ,fire hydrant ,water lance and the fire-fighting truck so that they are to supply water or foam misture for putting out fire. Technical Specification

Model	KD			KY		KN		KJ
Diameter(mm)	DN50	DN65	DN80	DN50	DN65	DN50	DN65	DN50/ DN65	DN65/ DN80
Working Pressure(Mpa)	1.6
Testing Pressure(Mpa)	2.4
Available Medium	Clear Water, Foam mixed liquid

Fire Hose Coupling Type	Inlet	Outlet
British/John Morris Coupling	2.5"BS336	Φ63.5
	2"BS336	Φ51
	1.5"BS336	Φ38
	2.5"BS336	Φ51
	2.5"BS336	Φ38
	2"BS336	Φ38

Fire Hose Coupling Type	Inlet	Outlet
American(ANSI Pin)Fire Hose Coupling	2.5"NH	Φ63.5
	2"NH	Φ51
	1.5"NH	Φ38

Fire Hose Coupling Type	Inlet	Outlet
Nakajima(Machino) fire hose coupling	2.5"	Φ63.5
	2"	Φ51
	1.5"	Φ38

Fire Hose Coupling Type	Inlet	Outlet
Forestry Fire Hose Coupling	1.5"	Φ38
	1.5"	1.5" BSP
	1.5"	1.5" NPSH
	1.5"	F1.5" BSP

Fire Hose Coupling Type	Inlet	Outlet
Gost(Russian) Fire Hose Coupling	2"	Φ50
	2.5"	Φ70
	3"	Φ80
	4"	Φ100

Fire Hose Coupling Type	Inlet	Outlet
UNI Fire Hose Coupling	UNI70	Φ70
	UNI45	Φ45

Fire Hose Coupling Type	Inlet	Outlet
Storz Fire Hose Coupling	4" STORZ	Φ100
	3" STORZ	Φ75.5
	2.5" STORZ	Φ63.5
	2" STORZ	Φ51
	1 3/4" STORZ	Φ44.5
	1" STORZ	Φ38

---
