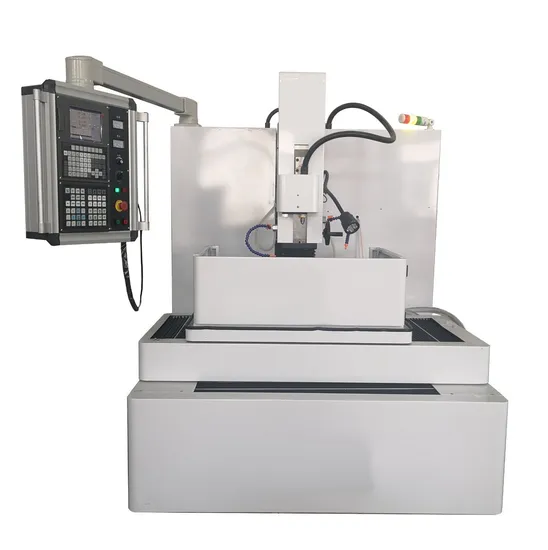

Sk6380 Punching for Steel Plates CNC Drilling Hole Machine

Product Description

This machine is a high-speed EDM equipment with small holes. The copper tube is used as the electrode and guided by the guide. A high-efficiency pulse power supply is applied between the electrode and the workpiece. In the process, the Spindle-driven electrode is servo-fed under the control of the servo system, and pulse high-frequency discharge is generated between the electrode and the workpiece, which can control the erosion of the workpiece. In the process, the high-pressure water quality working fluid is ejected from the inner hole of the electrode, and the chips are forced to be discharged and cooled in the processing area to ensure the smooth processing. Machining aperture range is generally in the range of 0.2-4. The depth-diameter ratio of the aperture is about 1 mm can reach 300:1, and the processing speed is generally 1-40/min. It can penetrate directly from the inclined surface and surface without the limitation of hardness and toughness of the material. CNC EDP is a set of advanced functions such as Z-axis deep precise processing, X-axis and Y-axis servo detection, and it is easy to use and operate. Single, stable, reliable, wide range of applications and other characteristics of products. It can be used for deep and precise small holes which are difficult to be machined by many traditional processing methods, such as cutting perforation, blowhole, group holes and nozzle holes of various metals and super-hard conductors.

	SK703-3040	SK703-4050	SK703-5063	SK703-6080
worktable travel(mm)	300*400	400*500	500*630	600*800
Spindle head stroke(mm)	300	300	400	500
servo travel(mm)	400	400	400	500
Electrode diameter(mm)	0.2-4	0.2-4	0.2-4	0.2-4
Max.Machining Speed(mm/min)	40-60
Max.aspect ratio	300-1
Working fluid	running water
Working pressure(mpa)	7
Max.Processing Current(A)	303
Max. power consumption(KVA)	3
control mode	Basic three-axis CNC, multi-axis CNC can be customized according to customers, up to 7 axes

Our main products :* Servo Mid-speed WEDM machine* Stepper medium speed wire cutting machine* High efficiency fast Wire cutting* CNC drilling machine* Drilling EDM* EDM molding machina* Grinding machine* Turret milling machine* CNC drilling and milling machine* CNC engraving and milling machine* Vertical machining centerAll the above products have passed CE, SGS certificates.Our Strength:* Over 12 years manufacturing experience in CNC lathe machine.* The company abides by the concept of "providing high-quality,stable and cost-effective products and good services to the clients by relying on advanced and reliable technology, * Always adheres to a large amount of research and development investment and continuous engineering improvement* Longkai EDM machines are with high cutting accuracy, high cutting speed, high surface finish and high stability. * We have always been in the leading position of the reciprocating wire cutting machine, electrical processing power and control technology.After-sale Services:Warranty is one year.We would offer the parts (quality problem) free of charge during this period, freight collect.

---
