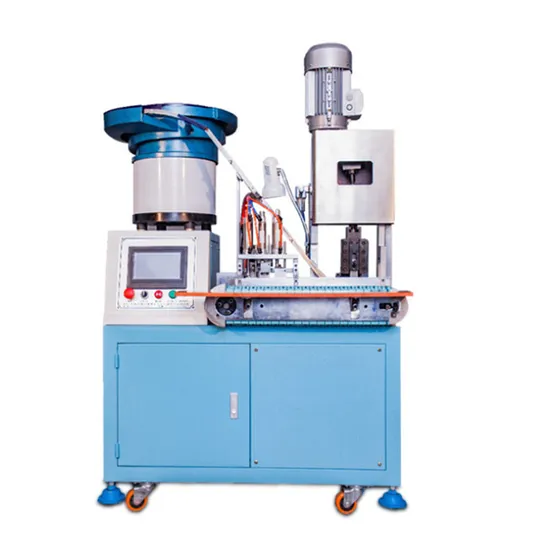

European Standard Plug Riveting Machine

Product Description

Automated European Standard Plug Riveting MachineThis is a semi-automatic european standard power cord plugs riveting press machine. It can complete cable outer jacket stripping, core wires stripping, wire end cutting, automatic vibrating plate feeding, and rivet pressing at one time. Main function: cable outer jacket stripping + inner core wires stripping + wire end cutting + automatic vibrating plate feeding + rivet pressing.
Features man-machine interface debugging, the whole machine is controlled by PLC and inverter, variable frequency motor, and the performance is stable.
Simple, safe and efficient operation.
Applicable wires: H03VVH2-F, H05VVH2-F

Model	WL-280-O
Capacity	1,800-2,200PCS/H
Crimping force	3T
Yield	≥99%
Operating air pressure	0.5-0.8MPa
Voltage	AC220V/50HZ
Power	1.6KW
Machine weight	433KG
Machine size	1170mm*770mm*1550mm

Packaging & Shipping
Company Profile
FAQ Q1. How to contact you?Contact us via trade manager directly. Send an inquiry to us via ****** or email address. Q2. What payment methods can you accept?We accept T/T, L/C, Western Union, PayPal…Q3. Do you have manual ?Manuals will go with machines.If you have any problem with operation, please feel free to contact us.Q4. How about the shipment time?Normally 5-7 days. Large order need to be negotiated5.What is your warranty?We have 12 month warranty.

---
