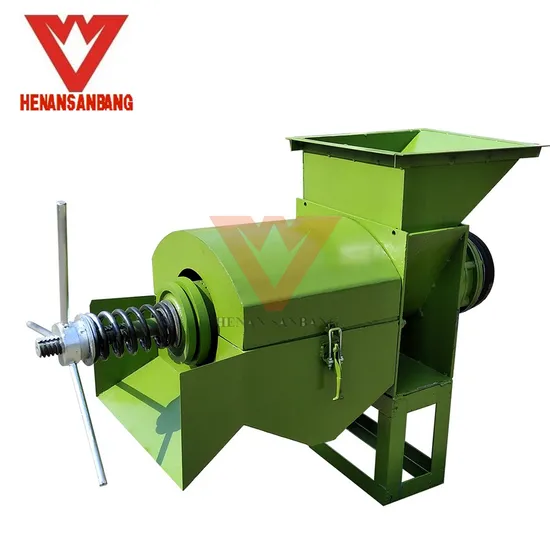

Zimbabwe Edible Palm Fruit Oil Press Machine Red Oil Palm Processing Machine

US$880.00 1 Piece (MOQ)

Basic Info.

Model NO.
Palm-1
Structure
Horizontal
Press Series
Fifth
Voltage
380V
Type
Palm-1
Capacity
350-450kg/H
Weight
340kg
Power
4kw/8HP
Transport Package
Export Wooden Box Packaging
Specification
1400*600*820mm
Trademark
SANBANG
Origin
Henan
HS Code
8479200000
Production Capacity
700 Sets/Year

Product Description

350-450KG/H Palm fruit oil press manufacturer
Product Description
Model PALM-1 stand-alone PALM-1 electric PALM-1 diesel oil
Handling capacity 350-450KG/H 350-450KG/H 350-450KG/H
Matching power 4kw 8HP
Internal dimensions 160*500mm 160*500mm 160*500mm
Spiral length 560mm 560mm 560mm
Screw speed 25-35r/min 25-35r/min 25-35r/min
Gross/Net Weight 260/230kg 260/220kg 340/280kg
Package size 1400*600*820mm 1400*600*820mm 1480*800*820mm

Application
The PALM-1 Type Screw oil press has the feature of easy operation, high oil yield, low consumption. It is well received in the Africa market, and has the good reputation among the customers.
The main oil seeds : palm fruit The construction
The main component are: host machine and motor
The host machines includes: base, frame, gear reducer, screw shaft, bar cage, feed inlet, cake outlet, oil-outlet and pressing bolt.
Features
A. Small space oppucation, easy to operate.
B. Low power consumption, energy-saving.
C. PALM-1 Type machine is suitable for the fixed point and mobile operation, convenient to move. Installation Instructions
Operating specification
1. Notes before the power-on:
A. Clean the bar cage, and make sure there is no foreign body on the machine.
B. Add the right amount of lubricating oil into the reducer.
C. Check for all parts bolts.
D. Make sure that the motor connected properly.
The operation steps
Turn on the motor, when it is working properly, and then feed the steamed palm fruit into the hopper grandually. In the pressing operation, see the conditions of oilout and cake-out. If there is little oilout or no cake out, please ajust the pressing bolt to get the best oil yield. Saftey and maintance
The PALM-1 machine use the three-phase 380 V AC. And also can customized according to the requirements, such as two-phase 220 V. To ensure that the saftey of all the electrical system, it must be take the groud protection measures. The cause of fault and the solution of fault
1. No oil or less oil 1. Ajust the squeezing bolt
2. The sudden stuck in the pressing operation 2. Halt. Check for the pressing barrel, see if the material is too much, clean the pressing barrel, and then power on.
3. Less oil out, more inpurity in the oil 3. Check for if there any damage of the hole of bar cage, change the bar cage.
4. The damage of shaft 4. Chage the shaft
