Product Details
Product Description
Product Description
Standards: BS 1377-4, ASTM D1883, GB/T T1034-1993

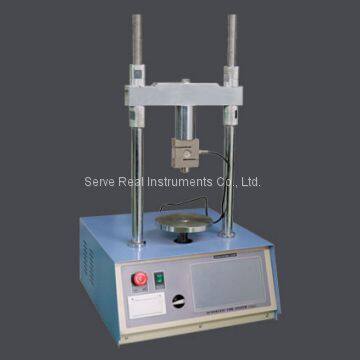

It’s used to test the California bearing ratio of soil, can connect with printer and computer, servo motor control.
Features
10.1 inch touch screen display, curve display, data storage and print
Freely setup deformation record point, loading rate
Data processing function automatic CBR value
Servo motor control, software speed feedback, loading rate stepless adjustment
Built-in micro printer
Digital dial gauge optional
PC software optional, use PC software can do independent test and output detailed test report
Technical specifications
Working condition: 0℃-60℃,＜85%RH
Max load: 50.00KN, deformation range 0-25.00mm
Loading rate: 0.20mm/min
Load cell range: 0-50KN
Displacement sensor range: 0-25mm
Resolution: 0.001mm, linearity: 0.3%
Motor: 220V, 0.37KW,1440rpm
Overall size: 400*350*800mm
>>
