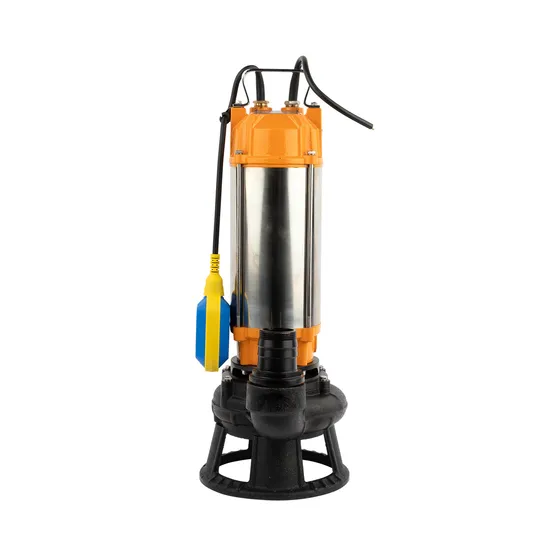

0.25kw 220V Submersible Pump Household Sewage Water Pump with Float Switch

Product Description

0.25kw 220V Submersible Pump Household Sewage Water Pump with Float Switch Product Description
Product overview
The WQ(D)-S series of all-stainless-steel precision-cast sewage and dirt submersible electric pumps adopt a unique single and double flow channel impeller structure, which significantly enhances the passing ability of dirt. The oil chamber is equipped with a fluororubber double-end mechanical seal, and the outer chamber adopts a single-end fluororubber mechanical seal structure, effectively reducing the problem of water ingress caused by the abrasion of the rotating shaft due to the friction between sediment and the shaft. The motor achieves F-class insulation through vacuum impregnation and is equipped with a thermal protection device, effectively prolonging the service life of the pump. The whole machine features a precision-cast pump casing, which is lightweight, corrosion-resistant, energy-efficient, aesthetically pleasing, hygienic, and environmentally friendly. Overheating protectors (<2.2kW) and current protectors (2.2 - 4kW) are installed inside the electric pump to prevent the motor from overloading and overheating.
Scope of use
It is applicable to buildings, hospitals, residential quarters, municipal engineering, road traffic and construction, chemical electroplating, factory sewage discharge, aquaculture, the pharmaceutical industry, the beverage industry, seawater and brine, as well as solid particles, long-fiber wastewater and sewage contained in general corrosive media. Product Parameters

Model	Maximum flow rate (m³/h)	Maximum head (m)	Rated power (KW)	Caliber (mm)	Voltage (V)
32WQD2-5-0.18	2	5	0.18	25/32	220/380
32WQD3-5-0.25	3	5	0.25	25/32	220/380
32WQD4-5-0.37	4	5	0.37	25/32	220/380
50WQD6-7-0.45	6	7	0.45	25/50	220/380
50WQ7-8-0.55	7	8	0.55	25/50	220/380
50WQD13-9-0.75	13	9	0.75	25/50	220/380
50WQD7-15-1.1	7	15	1.1	25/50	220/380
50WQD15-10-1.5	15	10	1.5	25/50	220/380

Detailed Photos

Company Profile

Lundu Electromechanical Co., Ltd. is a collection of production, sales, scientif ic research, import and export and after-sales service as one of the high-tech enterprises. The company speciaizes in the production of YE3, YE4, MS, YS, YE) series of single, three-phasemotor; Aluminum motor, frequency conversion motor and other special motor.The company strictly in accordance with the ISO9001 international quality system certif ication management production, so that the speed of new product development and success rate is greatly improved, the company has advanced production, factory in spection equipment, so that the product quality is strongly guaranteed, so that it has won the trust and praise of a wide range of users. We face the future market with continuous innovation. Our products are exported to Europe, America, Africa, Southeast
Asia, Middle East and other countries and regions. FAQ
1.Are you a trade company or a manufacturer? A:We are an ISO, approved manufacturer specialized in water pump. OEM & ODM service are available. 2.What is your MOQ? A: Our minimum order quantity is 100 piece. 3.What is your delivery date? A: The delivery date is about 5-15 days after receipt of payment. 4.What is your payment terms? A: 30% deposit in advance and 70% balance before shipment. 5.Do you inspect the finished products? A: Yes, each step of production and finished products will be came out inspection by QC department before shipping.

---
