1u 2u Rack Mount ODF Fiber Termination Box 12 24 48 Port Optical Distribution Frame

Product Description

1U 2U Rack Mount ODF Fiber Termination Box 12 24 48 Port Optical Distribution FrameA "PLC Fiber Splitter Rack Mount" refers to a specific type of fiber optic splitter that is designed to be installed in a standard 19-inch rack mount system. Here's a breakdown of its components and features:
PLC Fiber Splitter: PLC stands for Planar Lightwave Circuit. A PLC fiber splitter is a device used in optical fiber networks to split a single optical signal into multiple signals. This allows one optical signal to be distributed to several locations. PLC splitters are known for their high performance, low insertion loss, and reliability.
Rack Mount: This indicates that the splitter is designed to be mounted in a standard 19-inch equipment rack. Rack mounting allows for organized, space-efficient installation of multiple units and is common in data centers, telecommunication rooms, and other facilities where space is at a premium.

Symmetric Type		1×2	1×3			1×4	1×6		1×8		1×16
Operating Wavelength(nm)		650-1350,or On Request
Insertion Loss	Typical Loss(dB)	3.4			5.5	6.7	9		10.2		13.5
	Max Loss(dB)	3.7			5.8	7	9.4		10.5		14
Uniformity(dB)		≤0.6			≤0.8	≤1.0	≤1.2		≤1.5		≤1.8
PDL(dB)		≤0.1			≤0.1	≤0.1	≤0.1		≤0.1		≤0.15
Return Loss(dB)		≥40 or On Request
Directional(dB)		≥50
Fiber Type & Loose Tube		50/125 or 62.5/125 μm Multi-Mode Fiber;φ900μm Loose Tube
Connector		On Request
Fiber Length(m)		≤1.5 or On Request
Chip SizeH(mm)×W(mm)×L(mm)		2.2×1.8×10.4		2.2×1.8×11.4		2.2×1.8×12.9		2.2×1.8×20.4		2.2×1.8×16.4	2.2×2.2×21.4
Chip Channel Spacing(μm)		250		250		250		127		127	127
Minimum Package Size with bare fiber H(mm)×W(mm)×L(mm)		4×4×40		4×4×40		4×4×40		4×7×55		4×7×50	4×12×60
Minimum Package Sizewith loose tube H(mm)×W(mm)×L(mm)		4×7×50		4×7×50		4×7×50		4×7×60		4×7×55	4×12×60

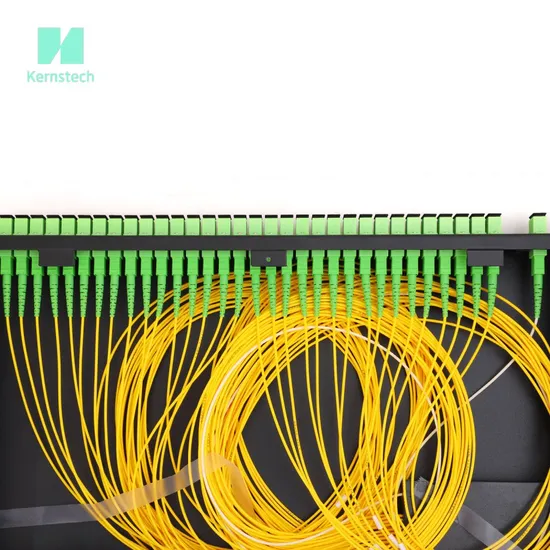

1. The above parameters do not include the fiber connector loss; 2. Each connector in the optical path will increase the loss by 0.2dB. Detailed Photos
Key Features of a PLC Fiber Splitter Rack Mount:Compact Design: It fits into a standard rack mount enclosure, saving space.High Performance: Ensures minimal signal loss and high efficiency in splitting the optical signals.Ease of Installation: Can be easily integrated into existing rack-mounted systems for fiber distribution.Organization: Helps in keeping fiber optic cables organized and accessible in a structured manner.Applications:Telecommunication: Used in networks to distribute optical signals to various endpoints.Data Centers: Manages and routes optical signals within the facility.CATV Systems: Distributes signals to multiple subscribers or locations.FTTX Networks: Facilitates fiber-to-the-x (FTTX) deployments, such as FTTH (Fiber to the Home) or FTTC (Fiber to the Curb).
Company Profile
Shenzhen Kerns Tech Co., Ltd. Is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipment.The main products of Kerns Tech include optical combiner, isolator, circulator, optical devices, fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in laser equipment, fiber optic equipment, laboratory research, instruments, telecommunications, broadband, broadcast, CATV and network industry.All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
Certifications
You May Like

Packaging & Shipping
FAQ
Q1: What is the warranty?
A1: Our products typically come with a one-year warranty. During the warranty period, if the product fails due to manufacturing defects or material issues, we will provide repair or replacement services free of charge. The warranty does not cover damage caused by misuse, mishandling, or failure to follow the operating instructions.
Q2: What is the packaging?
A2: Our products are packaged with professional shockproof and protective materials to ensure they are not damaged during transportation. Typically, the packaging includes anti-static bags, foam padding, and sturdy cardboard boxes for multiple layers of protection. For special products, we can also provide customized packaging according to customer requirements.
Q3: How do I know if this product is exactly what I need?
A3: Before purchasing, you can determine if the product meets your needs through the following ways:
Product Manual: Carefully read the product manual and technical specifications.Technical Support Consultation: Contact our technical support team with your specific application requirements, and we will recommend suitable products for you.Sample Testing: For bulk purchases, we can provide samples for you to test and evaluate.Customer Reviews: Check other customers' reviews and feedback.Q4: How do you maintain quality? A4: We ensure product quality through the following methods:
Strict Raw Material Selection: Only select high-quality raw material suppliers.Advanced Production Equipment: Use modern, precise production equipment and technology.Quality Control System: Establish a comprehensive quality control system, with strict quality inspections at each stage from raw material intake to product dispatch.Professional Team: Employ experienced engineers and technicians responsible for production and quality management.Continuous Improvement: Continuously collect customer feedback to improve product design and manufacturing processes, enhancing product performance and reliability.Q5. What applications do your products relate to?A5: Our products cover a wide range of network telecommunication and Precision Manufacturing Service fields.
Q6: What's your best price for your passive fiber optic product?A6: Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

---
