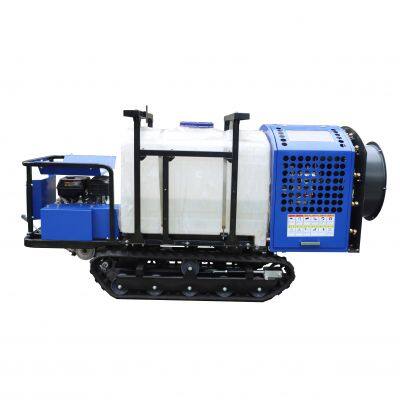

Mini crawler type remote control air blast sprayer
Engine: gas engine 10HP.
Tank capacity: 350-500L .
Operation way: handle and remote control.
Fan tower: according to customer design and produce.
CO.,LTD, Main produces:Agricultural machine: Boom sprayer, air blast power sprayer, agricultural sprayer, 4WD wheel type transporter tractor, single/double ridger making machine.
Garden machine: Mini crawler type truck dumper, mini crawler tree mover, remote control air blast power sprayer, wood shredder, crawler fertilizer spreader , mini crawler type mulitfunction garden tractor, multifunction wheel transporter machine, and so on.
Main produces:Agricultural Boom sprayer, 4WD wheel type transporter tractor, single/double Paddy Bunding Machine.
Garden machine: Mini crawler truck dumper, air blast power sprayer, garden work platform, crawler wood shredder, fertilizer spreader , mini crawler mulitfunction garden tractor.
Model
| 3WZF-500
|
Tank capacity
| 500L
|
Overall size
| 2625*1160*1150 mm
|
Net weight
| 590 KG
|
Work pressure
| 1-2 Mpa
|
Sprayer height
| 4-8m
|
Wind speed
| 20-25 m/s
|
Single sprayer nozzle flow
| 1-2.6L/min
|
Sprayer nozzle type and quantity
| Copper ceramic double nozzle 12 PC
|
Drive system engine power
| Loncin gas engine 5.4 Kw
|
Sprayer system engine power
| Loncin gas engine 8.1 Kw
|
Sprayer fan diameter
| 560 mm
|
Climbing capacity
| 25 degree
|
Turning radius
| ≤1.2 m
|
Gearbox
| 3+1*2 high and low
|
Sprayer pump type
| Three cylinder plunger pump
|
Remote control distance
| 100-200 m
|
>>
