Laser Bridge Saw Automatic Stone Cutting Machine Marble Cutting Machine (HQ400-600-700)

Product Description

Laser Bridge Saw Automatic Stone Cutting Machine Marble Cutting Machine
Machine model: HQ400-600-700
Automatic granite bridge saw/marble bridge saw applicable for cutting marble, granite, quartz, sandstone, and other stone materials. It's a robust bridge saw in cutting and fabricating slabs, tiles, vanity tops, countertops, etc.
Granite bridge saw/marble bridge saw specifications:

Model	HQ400	HQ600	HQ700
Blade Size	Φ300-Φ450 mm 12"-18"	Φ300-Φ600 mm 12"-24"	Φ300 - Φ700 mm 12" -28"
Blade Tilting	N/A	N/A	0°- 50°
Table Size (L×W)	3200×2000 mm 126"×79"
Table Rotation	0°- 90° / 360°		0°- 360°
Table Turnover	0°- 85°
Max. Cut (L×W)	3200×2000 mm 126"×79"
Max. Cut Depth	110 mm 4"	180 mm 7"	230 mm 9"
Spindle Motor	15 Kw 20HP	15 Kw 20HP	18.5 Kw 25HP

Granite bridge saw/marble bridge saw introduction with pictures:
The main structures of the granite bridge saw/marble bridge saw is made of strong cast iron and stainless steel for protection.

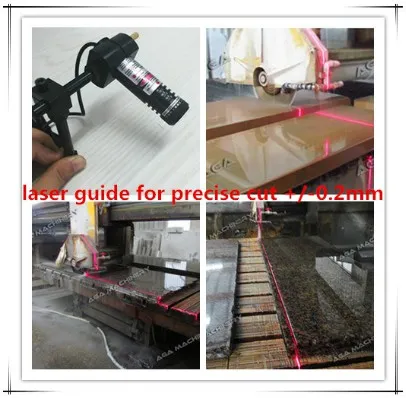

This granite bridge saw/marble bridge saw is an infrared one with laser guide, showing precision cutting everytime. All functions are operated on the color touch screen which provide easy operation.
The hydraulic table can tilt 85 degrees for easy load of materials and rotate 0-90 degrees to change the cutting position. Table rotating 0-360 degrees is optional, if customers need, we can make it.
The blade of the granite bridge saw/marble bridge saw goes left and right, up and down, the bridge beam moves forward and backward. Blade tilting 45 degrees for miter cuts is optional for model HQ700. If you need the auto miter cuts, model HQ700 is preferable.
This granite bridge saw/marble bridge saw is microcomputer control and works automatically by program, it provides fast and easy operation.
It's a robust bridge saw that provides fast and easy cuts on granite marble stones, if you need a reliable machine with good price, this is exaclty what you need.
FAQ:
1) Payment:
T/T 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
AGA Machinery:
AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.
