Colo-1732 Electric Powder Coating Batch Curing Oven for Steel Plates

Product Description

Product Description
Colo-1732 Electric Powder Coating Batch Curing Oven for Steel Plates
The COLO-1732 oven is a very popular model among our many standard size ovens because it is not too large and not too small to handle most powder coated metal bake production needs.
The inner size of this oven: W1650*H1700*D3200, can bake various powder coated products like wheel rim, steel panel, steel tubes, metal chairs etc.The oven uses an electric heating system, and the baking space is very clean, which improves the drying quality of sprayed products.Our heating designs ensured the drying quality of sprayed items.The oven has thermal circulation so the air is heated very evenly.Our oven uses a rock wool board with a thickness of 100mm, which is a very standard thickness required for good insulation
Detailed Photos

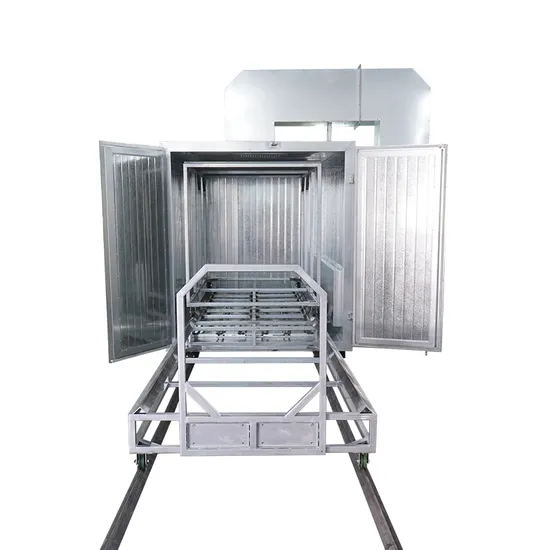

Transporting System
Provide trolley and frames for loading and transporting heavy or large workparts conveniently, also supports customized services, clients could customize the suited sized according to different workparts size and shape.
All transporting systems will not pollute the inner chamber and workparts, ensure the clean environment in powder curing process. and purity of workparts.
COLO-1732 Powder Coating Oven Features
PLC Controller
COLO powder coating ovens are equipped with PLC Controller, provides high-precision heating process, operators could set the desired temperature and heating time accurately on the panel, which digitally shows on LED screen.
Once the curing time arrive, the oven will stop heating automatically. The control panel also includes safety devices: alarm light and emergency stop buttons, etc.
Powder Coating Oven Materials
Oven wall interlayer material is 100mm thick rockwool board, density 120kgs/cbm, built with heat-resistent galvanized innerwall and durable color steel outwall to form a sandwich insulation structure.
This is an optimum design to maintain the temperature in oven chamber.
Circulation Fan
We can boast a very good temperature uniformity result due to the circulation fan. Our research has shown the temperature stability does not exceed ±5°C. The optimal airflow throughout the powder coating oven enclosure creates an even, constant cure for your parts.
Specifications
COLO-1732 Powder Coating Oven Specification

Model	COLO-1732
Worksize dimensions	Width1650 x Height1700 x Depth3200 mm
Overall dimensions	Width1950 x Height2100 x Depth3600 mm
Heating Source	Electric
Power supply Electric	18kw
Voltage	380V/220v
Frequency	50-60hz
Warm-up time	15-30 min. (180° C)
Temperature stability	< ± 3-5°C
Temperature max	250° C
Ventilation performance	805-1677m3/h
Motor power	0.75kw
Circulation/ Air flow Vertical	Variable through holes on the walls
Warranty	12 months

Application
Customers Reviews
Packaging & Shipping

Lead time	15 workdays
Packing	Assembled oven to be packed by pearl cotton
Shipping	By sea
Payment	Bank transfer, paypal,western union

Main Products
These are our popular standard size ovens Company Profile
