HOWO 5000L 3mt Gas Truck LPG Tank LPG Tank Tanker Truck

Product Description

PART 1 : COMPANY BRIEF INTRODUCTION
HOWO 5000L 3mt Gas Truck LPG Tank LPG tank Tanker Truck
1, ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is the biggest special purpose vehicle manufacturer in China.also we are famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW.Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, fecal suction truck, garbage truck, refuse compactor, sewage suction truck, fuel tank, high-altitude operation truck, truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.

2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
We have been in this field for over 10 years, we have more than 300 types of special trucks, our workers are more than 1000 and factory is more than 690,000m2 .We have successfully exported our trucks to Ghana, Sudan, Nigeria, Tajikistan, Namibia, Burma, Korea, Iran, Iraq, Vietnam etc. many Africa & Asia countries more than 4000 trucks every year.
3.Quality control:our company truck pass ISO,3C,BV certification.
our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.
4.Design capacity :Our factory have 30 technician and designer.
5. Exhibition:our factory attend the Guangzhou Trade Fair each year.
6. Export market: Africa,Asia,South America,Pacific and so on
7.Our company cooperate with famous chasis manufacturers,include all chinese brand like FOTON , DONGFENG , SHACMAN , HOWO , FAW , GENLYON , NORTHBENZ , CAMC , JAC , JMC .
PART 2:HOWO 5000L 3mt Gas Truck LPG Tank LPG tank Tanker Truck specification :

vehicle	Vehicle Type	5m3 LPG truck		Tank	designed pressure	1.77Mpa
	Overall dimension	6100*2500*2350(TBD)			Max worked pressure	1.61Mpa
	Curb weight(kg)	4860			designed temperature	50ºC
	Loading weight(kg)	2500			corrosion allowance	1.0mm
	Chassis model	EQ1080			capacity	5M3
	Engine model	CY4102			heat treatment	Whole body by 620 ±20 ºC
	Displacement/power	120HP			Hydraulic test pressure	2.66MPa
	Max torque/speed	360/1400-1600N.m/rpm			Air tight test pressure	1.77MPa
	Wheel base	3800			Tank length*DIA	3600mm*1500mm
	Tire model	7.50R16			Tank thickness	8mm
	Transmission	6 forward ,1 reserve			tank material	Q345R
Accessory
No	Name	Model	Spec			number
1	Ball float level gauge	UQZ-25P	1700			1
2	Pressure gauge	Y-100T	0~4MPa			1
3	thermometer	WTQ-280	-40~60ºC			1
4	Safety valve	A412F-25-14	Nominal Pressure 2.5MPa, 2"			2
5	Emergency cutoff valve	QGJ43F-25-7-8	Nominal Pressure 2.5MPa, 2"			4
6	Globe valve	J24W-64	DN6			1
7	Ball valve	CQA41F-25P	2"			2
8	Loading&unloading system	Q41F-2.5P/CQA41F-2.5p	Nominal Pressure 2.5MPam, Gas phase pipe size TBD Liquid phase pipe size TBD
9	PTO
10	Gas pump
11	Gas dispenser
12	Pipe Reel

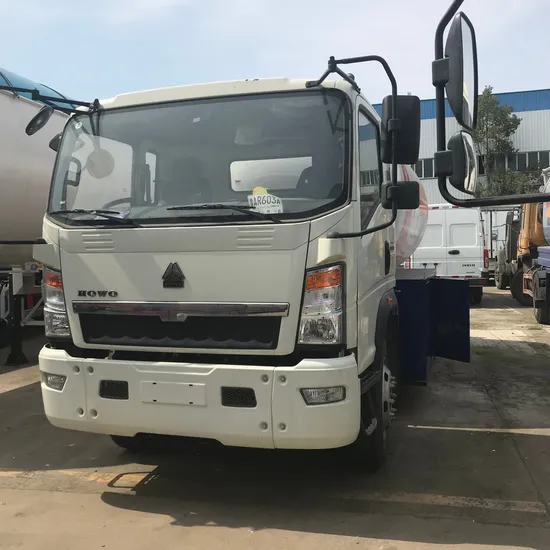

PART 3:HOWO 5000L 3mt Gas Truck LPG Tank LPG tank Tanker Truck photo
HOWO 5000L 3mt Gas Truck LPG Tank LPG tank Tanker Truck
PART 4: FACTORY CERTIFICATE:
PART 5:SHIPPING:
PART6: MOQ:JAC 4Ton 6cbm trash truck garbage compactor truck Garbage collector Q1. Quality control
A:We make quality control for each step while producing and before shipping.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. LC terms is also can be accepted .
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.DAP etc .
Q4. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. For standard products, delivery time is as below:Water tanker truck:7 days
Fuel tanker trailer:15-20days
Garbage truck:15 days
Sweeper road truck:25 days
Wecker truck:7-10 days
Suction sewage/Fecal truck:7-15 days
Crane truck:15 days
Refrigerator/Van truck:7-15 days
Dump truck:20 days
Concrete mixer truck:7-25 days
LPG :20-30 days
LED truck:7-15 days
(the above is left hand drive chassis ,if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to contract .)
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. How to control truck quality?
A: we have Rich experience workers and engineer to control quality before and on production , we strictly followed STATE special truck technical specification and safety production specification . We have been in this line for over 15 years, dealing with all kinds of special trucks and trailers.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Q9. Did you sell truck to our country before? A:Our main market is Africa, Asia, South America , Oceania ,middle east , annual sales is around 5000units and keeping growing every year .HOWO 5000L 3mt Gas Truck LPG Tank LPG tank Tanker Truck

---
