Machine Description

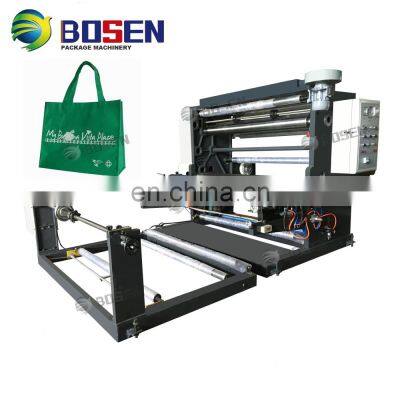

Machine Name: Single Color Flexographic Printing Machine Price Application
Printing machine could be used for printing materials as following:
1.Polyethylene, polyethylene plastic film printing
2.Bag(packing bag for food, supermarket handbag, vest bag and clothes bag printing
3.Roller paper and craft paper printing
4.Pp woven bag , pvc film, bopp film, printing
5.Laminated bag rolling printing
6.Non woven rolling printing
7.Rice bag pp woven printing
8.Paper printing
Model
| BS YT-2600
| BS YT-2800
| BS YT-21000
|
Max.Material Width(mm)
| 600
| 800
| 1000
|
Max.Printing width (mm)
| 560
| 760
| 960
|
Printing length
| 191-914mm, or customized
|
|
|
Print colors
| 2 colors (also we have 1,2,4,6,8 colors for your choise )
|
|
|
Mechanical speed
| 80m/min
| 80m/min
| 80m/min
|
Printing speed
| 60m/min
| 60m/min
| 60m/min
|
Diameter of material
| Φ450 mm
|
|
|
Total Power
| 5kw
| 6kw
| 7kw
|
Plate Thickness (including two sides glue paper)
| 2.38mm, or customized
|
|
|
Machine Weight
| 1500kg
| 2000kg
| 2500kgs
|
Overall Dimensions
| 1900×1800×2200mm
| 1900×1800×2200mm
| 1900×1800×2200mm
|
Working Voltage
| 380V 3-phase 50Hz, or customied such as 220V, 410V, 440V
|
|
|
Option for getting higher quality machine
1. Automatic tension controller
2. Epc web guide equipment
3. Air shafts
4. Corona treatment
5.Blades
6. Helical gear
7. Belt driving system
8. PLC touch screen computer control sysytem
Product Sample
If you are not sure it is your wanted machine, you could send us your sample for confirmation. We will carefully checking, then give you a best quotation.
Work Shops
1.Workers Are 10 years Average Working Experience.
2.Main Parts Like Die Head And Screw And Air Ring, Machined In Cnc Equipment.
3. Strong Body Welding Frame And Carefully Paint.
4.Good Brand Used, Like SIEMENS, ABB, YASKAWA, DELTA, LS, OMRON, SCHNEIDER....
Certifications
Film blowing machine, printing machine, bag making machine ce certificated.
If you need any certificate, pls contact with us before you ordering.
Packing & Delivery
We will pay attention to every parts packing with bubble film or stretch film or wooden case.
Besides, we will load machines one by one carefully. And our delivery team is professional on all the machine inspection and certificates for your clearance custom.
