Excavator Mounted Rock Drill Attachment Pd90 Mining Rock Drilling

US$37,000.00 1 set (MOQ)

Basic Info.

Model NO.
Excavator Mounted Drill PD-Y90
Bucket
Teeth
Transmission
Mechanical Transmission
Drive Type
Electric Drive
Certification
ISO9001: 2000
Condition
New
Available Rigidity Rock
F=6-16
Drill Scope
27-64mm
Drill Speed
500-1000mm/Min
Lowest Horizontal Hole Height
250mm
Once Propel Travel
3m
Compressor Type
1.8m3-3.2m3
Drifter Weight
90kg
Whole Weight
1.2t
Transport Package
Standard Package
Specification
CE, SGS
Trademark
PRODRILL
Origin
China
HS Code
8467890
Production Capacity
100pec/Months

Product Description

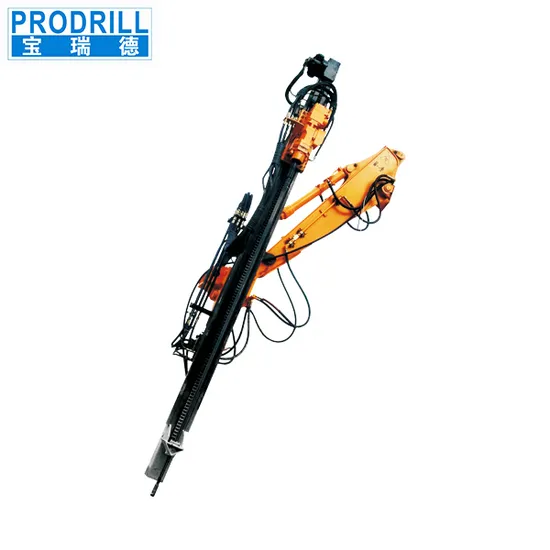

Excavator Mounted Rock Drill Attachment PD90 Mining Rock Drilling
PD90 Excavator Mounted rock drill suit to the 15-20 tons excavator mounted machines. The rate of the Pump can reach 200L/min, drilling diameter 45-90mm, 3m depth per time drilling. Drilling speed: 3-5min/m for hard rock, 1min can drill 1m depth for soft rock. Excavator mounted rock drill can use the same type of hydraulic oil pipe line as hydraulic breaker Technical Parameter for PD90 Hydraulic Drifter:
Item Description Unite Parameter
1 Import parameter Import Oil Pressure Mpa 16-19
2 Import Rate L/min 55-65
3 Import Frequency Hz 34-50
4 Import Energy J 300
5 Rotation Parameter Rotation Oil Pressure Mpa 4.5-15
6 Rotation Rate L/min 40-70
8 Maximum Torque Nm 100-300
11 Net Weight Kg 115
13 Drilling hole Dia mm 38-89
14 Drilling depth m <=15

PD 90 Rock Drill Set:
Products type PD-Y90
Available rigidity rock F=6-20
Drill scope 45-89mm
Drill speed 500-1000mm/min
Lowest horizontal hole height 250mm
Once propel travel 3m
Oil pressure ≤19Mpa
Compressor type 1.8m3-3.2m3
Size 7488*140*252mm
Drifter weight 115kg
Whole weight 1.2t
