Product Description
Product Description

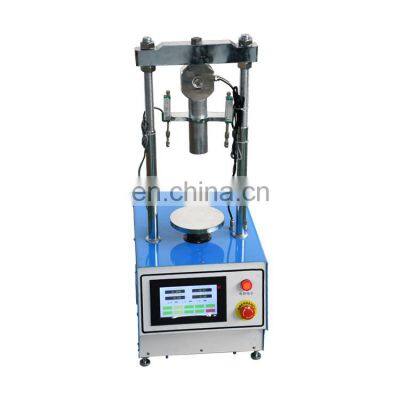

California Bearing Ratio TesterProduct DetailsProduct ApplicationThe load-bearing ratio (CBR) tester is used to test the load-bearing ratio of various soil and pavement base and bottom materials after making test pieces in a prescribed test tube. The maximum particle size of the mixture should be controlled within 25mm, and the maximum size should not exceed 40mm.Test speed1mm or 1.27mm/min. The factory setting is 1mm/min fast speed: 15mm/min. Support settingTest force50kNAccuracy0.001KNPenetrating rodEnd face Φ50mmDisplacement sensor0-25mmScale division0.01MMLinearity0.3%Perforated plate2pcsLoad board4pcs(outer diameter: Φ150mm, inner diameter: Φ52mm, 1.25kg/pc)Test tubeinner diameter Φ152mm, height 170mm, cushion Φ151mm, height 50mm(same as the heavy-duty compactor test tube)Voltage220V (support customizing)Detailed Images 1. 7-inch color touch screen display, with curve display, data storage and printing. 2. Support two international standards and domestic standards at the same time British standard BS 1377-4, American standard ASTM D1883, and National standard T0134-1993. 3. Deformation recording points and loading speeds can be set arbitrarily to meet the needs of different test standards. 4. With data processing function, CBR value can be calculated automatically. 5. Servo motor control, with software speed feedback, stepless adjustment of loading speed. 6. Built-in micro printer can print data stream list and test results. 7. Data can be uploaded (optional).Company informationCangzhou Lovely Technology Co., Ltd is specialized in Nondestructive Test Instrument and Material testing machine over 10 years,Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which win favorable comments from customers worldwide.Cangzhou Lovely Technology Co.,Ltd. insisted on "Integrity-based, guests supremacy". Welcome customers from all over the world to visit us for business negotiation!The Foreign Trade Department of Cangzhou Lovely Group Co.,Ltd. was established.According to customers' requirements, there has the machine---CZY5 Rebar Weighing and Length Measuring InstrumentIndependent research and development and production of GW50 Automatic Rebar Bending Testing Machine.L800 Integrated Floor Thickness Gauge RBL+ Rebar Detector goes public.New product-- U900 Series Non-Metallic Ultrasonic Detector.HYE-2000 Series Microcomputer Servo Compression Testing Machine: Pad adjustment, Manual screw adjustment, Electric screw adjustment.WAW-B Micro Electromechanical Liquid Servo Universal Testing Machine.EV2 Static Deformation ModulusTester; EVD Dynamic Deformation Modulus Tester. ---Patented ProductThe factory was established, begin to produce more than 20 types instrument.Our ServicesPre-sale service* OEM customized service * Equipment installation and calibration * Free technical training for visiting factoriesAfter-sales service* 24-hour Online consulting support. * Training how to instal use the machine. * the professional after-sale service team will provide perfect technical supportPacking & DeliveryWe promise the delivey in time. And we support customize products for customers. Such as the voltage and package etc. All wooden box are suitable for exporting.FAQQ1:Are you a factory or trading company? A:We are a factory specializing in manufacturinf all kinds of tester. Q2:Where is the loading port?A:Qingdao port or tianjin port. Q3:What’s the MOQ of the product? A:Different item has different MOQ.normally one stand is preferred. Q4:What certificates do you have? A:We have ISO 9001. Q5:Do you have an OEM service? A:Yes.We can provide OEM and ODM services as your requirements. Q6:How long is the production cycle after ordering? A:General it is about 7-20 days. Q7:What is the payment method? A:T/T payment is preferred and other payment terms is accepted. Q8: Could you support to customize?A: Yes, we could customize the package and Voltage as request.Hot Sales
>>
