Model NO.
EUM-075S105BG EUM-075S150BG EUM-075S210BG
Driving Method
LED Constant Current
Circuit Structure
Capacitor Step-down
Certification
TUV, CE, RoHS, ISO9001, CCC, LVD, EMC, Bis, FCC, ENEC, SAA, CB, Ks, Kcc, Dali-2
Power Supply Mode
Constant Current Source
Modulation System
Dali-2 and D4I Certified, 3-Timer-Modes Dimmable
In-Out
AC 90-305V Input, DC Output
Power Supply Voltage
AC85-265
Product Name

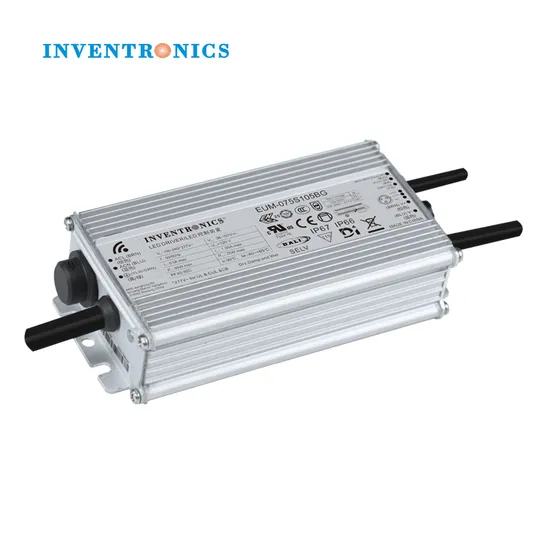

Inventronics 50-75W Dali-2 D4I Dimmable LED Driver
Adjustable Output Current
70-1050mA (700mA); 105-1500mA (1050mA); 140-2100mA
Output Voltage Range
36~107 VDC; 25~72 VDC; 18~54 VDC (24V 36V 48V 54V)
Dimming Functions
Dali-2 and D4I Certified, 3 Timer Models Dimmable
IP Class
IP66 / IP67 and UL Dry / Damp / Wet Location
Input Surge Protection
Dm 6kv, Cm 10kv
Efficiency
Super High Efficieny, up to 90.5%
Power Factor
0.99 at 120VAC; 0.96 at 220VAC
Protections
All-Around Protection: Iuvp, Iovp, Ovp, SCP, Otp
Features
Integrated 16VDC Bus Power Supply Based on Dali-2
Other Features
Adjustable Output Current (Aoc) to NFC Dim-to-off
Applications
LED Street Lighting, Tunnel Lights, Stadium Sport
Delivery Time
3 to 60 Working Days Due to Models and Quantity
Shipping Way
by Sea, by Train, by Air, by Express DHL FedEx etc
Transport Package
5PCS Per Inner Tray, 25PCS Per Brown Carton
Specification
5.59"x2.66"x1.44" inches (142x67.5x36.5mm), 670g
Origin
Hangzhou, Zhejiang, China
Production Capacity
20000pieces/Month
