Xintong Wooden 820-1950*385*180mm Brainpower AC Intelligent Signal Light Traffic Controller with CE ODM

Product Description

Product Advantage

Functional Features

•Perfect pre-sales and after-sales service for your satisfaction for traffic signal controller •Wires are placed on a high position to ensure electrical safety in case of heavy rain •Easy to set the parameters •Simple wiring methods classified •Different protection functions including electric leakage protection, lightning protection, output short-circuit protection, high current shock protection.

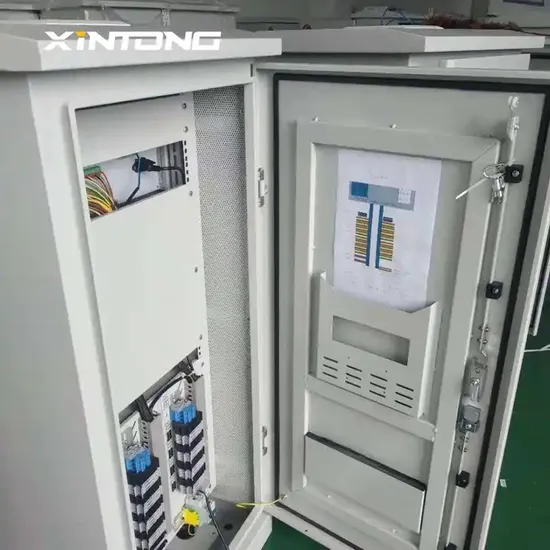

•Built-in central control system to ensure work stability •Weather-proof out-door cabinet with lightning-protection and power supply filter devices •Easy for maintenance and function extension by adopting modular design •Extensible RS-232,RS-485 interface to communicate with upper computer •Able to adjust, check and set while working

•Traffic signal light for road	2 sets
•Poles for traffic signal light	2 pcs
•Vehicle Priority system controller	1 set
•Cabinet for controller	1 pcs
•Loop detector	2 sets

Items	Technical Parameters
Working Voltage	AC110V/220V±20% (changed by switch)
Working Frequency	47Hz~63Hz
No-load power	≤20W
The whole controller rated load power	2200W
Motor operation sequence(special timing state should be statement before production)	all Red(can setup) →green light→green flash can setup) →yellow light→Red light
Pedestrian signal operation sequence	all Red(can setup) →green light→Green flash(can setup)→Red light
Rated drive current in each way	3A
Surge current in each way	≥100A
The largest output channel independently	44
The largest output way independently	16
Working menus	32
Can be setup menus number	30
The largest number of each meus	24
The largest number of timers in each day	48
Running time in each step	1~255
Full red transition time	0~5S
Yellow light transition time	1~9S
Green flashing time	0~9S
OperationalTemperatureRange	-40ºC~+80ºC
Relative Humidity	<95%
Setting Plan Saving Time(the electricity was turned off)	10 years
Time Error	Error/year<2.5 minutes (25±1ºC)
Inner Cabinet Dimension	472.6*215.3*280mm
Outer Cabinet Dimension	1250*630*500mm

Xintong adhere to the continuous development of products and technological innovation, and constantly improve customer service, with a group of professional and enterprising team. Quality is our first belief: smart transportation and safety projects are our responsibility,
Until they become good works, the goal is to build a full range of services for users. Today, Xintong has become a large-scale enterprise integrating product design, production, sales, service and engineering.
FAQ
1.Q:How should I pay for my order?
A:We support payment by TT,LC.
2.Q:Can you provide certificate for your products?
A:We can provide certificate like CE, SGS, ROHS, SAA.
3.Q:What is the Time of shipment?
A:lt usually takes about 15-25 days. But the exact delivery time might be different for different orders or at different time.
4.Q:Can I mix different items in one container?
A:yes, different items can be mixed in one container, but the quantity of each item should not be less than MOQ.
5.Q:Will you deliver the right goods as ordered?How can I trust you?
A:Yes, we will.We have a good cooperation with a number of excellent material suppliers, and we will make sure our, products are 100% inspection before packing
6.Q: What is your Advantage?
A:After-sale service!During the past 19 years, we take it as our company's life That's why we come so far, and that's why we will go further!

---
