2025 Bcmc Stone CNC Bridge Granite Cutting Machine CNC Engraving Stone Processing Machine for Marble Quartize Kitchen Sink Countetop

Product Description

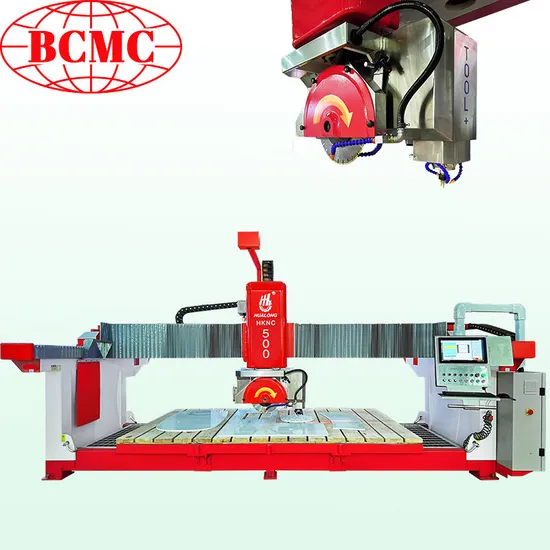

BCMC Machinery BCNC-500plus is a kind of multifunctional manufacturing machine for slab cutting, milling, drill, carving. Can handlling different kind of difficult work in one machine. Equiped with CNC touch screen system, USB port, WIFI connect, photograpging camera and vacuum lifter. Ideal for kitchen top, cooking bench, marble, granite and artificial stone processing. It's your good partner for slab processing.
Main Features
Equipped with 5 interpolated axis which can move in X, Y, Z axis together with the cutter head turning and rotation in one time. Updating with vacuum lifter to move the slab easily. CNC touch screen control system. Easy control and easy interactivity. Photograohing camera equiped. Helps for slab positioning and typeseting. Save time and reduce the waste of processing. Multifunctional processing function which can doing the complex work of cutting, milling, drilling and carving and even the curved surface processing. Cutter head can moves in 90 degrees up and down. Rotate in 360 degrees horizontal. Handling chamfering cutting at any angles in automatic. USB and WIFI connection. Easy to connect and upload your CAD/CAM files to the machine. Parameter

Configuration	Diameter of saw blade	mm	Φ400 - Φ500
	Dimension of working platform	mm	3500*2000(2100) mm
	Power of main motor	kw	26.4
	Power of tool slide reciprocating motor	kw	2
	Power of crossbeam shifting motor	kw	1.1
	Power of hydraulic station motor	kw	2.2
	Power of elevator motor	kw	0.85
Main Performance Parameters	Max. length of horizontal cutting	mm	3300
	Max. thickness of cutting	mm	140
	Max. lifting travel of cutter	mm	250
	Water consumption	m3/h	2
Measurement	Gross weight	kg	5800
	Dimension (L x W x H)	mm	5700x3260x2765

Detailed Information For Spare Parts
Control system:
Italian ESA CNC control system with touch screen for computer setting and controlling easily and visiable. Make your complicated work easily and high effficience. No need to switch from PC to machine frequently.
Digital Servomotor:
Italian digital servomotor. Using a kind of permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with ESA CNC control system, creates a reliable controlling power for X, Y, Z, A and C axes.
Sole Engraving Module (Optional)
* Type: electric spindle * Rotating speed: 0-24000 rpm
* Power: 5.5 kw
Comparing with machnical spindle, the rotating speed of this electric spindle is super higher. It makes engraving fine and faster,
or make curve cutting, corner cutting by milling much faster too.
Electro-spindle
High quality Electro-spindle controlled by an inverter allowing the adjustment of revolutions from 0 to 6000 rpm, so granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Linear Guide
Hiwin linear guide used on crossbeam and carling for high precision of cutting and long lifespan.
Processing

Final Products
Application

Customer Spot
Relevant Products You May Like

* 3D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art/tombstone
* Street furniture
* Ventilated facades

---
