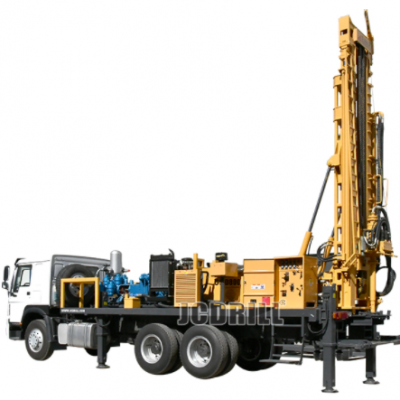

Borehole Truck Water Well Drill Machine with Air Compressor for Sale
Model:CSD800
Chassis:6X4,8X4
Max. Drilling depth:800m
Drilling Method:Air Drilling & Mud Drilling
>> Application
CSD800 truck mounted water well drilling rig mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project.
Truck mounted water well drilling rig is designed by our professional engineers with the advanced technology concept and it is a hydraulic rotary drilling rig. The truck chassis adopts the special crane chassis and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed mechanism are set up on the chassis. This rig is a rotary drilling rig with directional circulation and It is equipped with mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit. The power of drilling rig comes from the truck engine; the rig has distribute implement and hydraulic system.
>> Characteristics
>>The drilling rig can use air DTH Hammer drilling and mud drilling.
>>Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
>>The truck chassis adopts the 6X4,8X4 special crane chassis of brand Kaima&Foton and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed system are set up on the chassis.
>>It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW250 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
>>The power of drilling rig comes from a diesel engine, 76Hp Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
>>The rotary head, rotation speed is 0-100rpm stepless adjustment and the rotary torque is 4000-4800Nm.
>>The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
>>It can set up a generator which is convenient to welding or illuminate for work at night.
>>Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
>>The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
>>The tools winch winch is used for auxiliary lifting and casing, optional main winch force of 1.5T, rope length of 40m.
>>The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
>> Specification
Item
| Spec.
| Unit
| Parameter
|
General
| Chassis
|
| 6X4
| 8x4
|
Geology Drilled
|
| All kinds
| All kinds
|
Drilling Method
|
| DTH & Mud Rotary
| DTH & Mud Rotary
|
Hole Depth
| m
| 800
| 800
|
Hole Diameter
| mm
| Φ140—Φ650
| Φ140—Φ650
|
Rotation
| Rotation Torque
| Nm
| 9600 1st Gear
| 9600 1st Gear
|
14500 2nd Ger
| 14500 2nd Ger
|
Rotation Speed
| rpm
| 0-80 1st Gear
| 0-80 1st Gear
|
0-110 2nd Ger
| 0-110 2nd Ger
|
Feeding System
| Drill Pipe Diameter
| mm
| 102/114/127
| 102/114/127
|
Drill pipe length
| mm
| 3000/4500/6000
| 3000/4500/6000
|
Push down capacity
| T
| 10
| 10
|
Pull back capacity
| T
| 40
| 40
|
Winch
| Lifting force of tool winch
| T
| 4
| 4
|
Length of steel wire rope
| m
| 100
| 100
|
Engine
| Diesel Engine type
|
| CUMMINS
| CUMMINS
|
Rated power
| Kw
| 132
| 132
|
Electrical System
| Volt
| 24
| 24
|
Compressor
| Compressor Type
|
| Rotary Screw/Separate
| Rotary Screw/Separate
|
Pressure Required
| Mpa
| 1.2—3.0
| 1.2—3.0
|
Air consumption
| m³/min
| 11—35
| 11—35
|
Chassis
| Manufacturer
|
| SINOTRUCK
| SINOTRUCK
|
Rated Horse power
| Hp
| 400
| 400
|
Discharge Standard
|
| EU-2/EU-3
| EU-2/EU-3
|
Drive type
|
| 6*4
| 8*4
|
Max. Speed
| Km/h
| 102.9
| 102.9
|
Steering wheel
|
| left/right(Optional)
| left/right(Optional)
|
Mud Pump
| Model
|
| BW850/5
| BW850/5
|
Displacement
| L/Min
| 850
| 850
|
Discharge pressure (Mpa)
| Mpa
| 5
| 5
|
Generator
| Optional
|
| Engine or hydraulic Driven
| Engine or hydraulic Driven
|
Dimension&Weight
| Net Weight
| Kgs
| 22000
| 22000
|
Shipping （L*W*H）
| mm
| 10800*2550*3650
| 11000*2550*3650
|
Working size（L*W*H）
| mm
| 11000*2550*9800
| 11500*2550*9800
|
All truck brand & Engine brand available according to your requests!
|
>>
