PE PP soft plastic waste recycling washing line plant

Product Description

Product Description
This PE PP waste plastic film crushing washing recycling line is designed and manufactured by MOOGE TECH, which is widely used for waste plastic PE/LDPE/LLDPE film, PP woven bag, PP Jumbo bag, etc.
The waste dirty material go through crushing, friction washing, washing, dewatering, hot air drying process will turn to be clean flakes for pelletizing.
This PE PP waste plastic film crushing washing recycling line can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the washing line according to client's material and product requirement. Product Parameters
We have different capacity of this ME-series PE PP waste plastic film crushing washing recycling line for your optional choice.

Model	Capacity	Installed Power	Water Supply	Area Required
ME-300	300kg/hr	200KW	6-10m³/hr	40*4.5*5m
ME-500	500kg/hr	350KW	8-10m³/hr	40*4.5*5m
ME-1000	1000kg/hr	600KW	10-15m³/hr	55*6*6m

Working Flow
--- Belt conveyor: feeding the plastic film/bags into the crusher. If there is any scrap metal inside the material, semi-auto metal detector is suggested. --- T-series crusher: with water, crush plastic film/bags into small size (size is adjusted as buyer request)--- Friction washing loader machine: friction washing the material and loading out the material--- Floating washing tank: washing out the sand, soil and dirty from the material--- Screw loader: loading the material to the next step--- Horizontal friction washing dewatering machine: with high rotary speed washing out dirty and remove dirty water--- Floating washer tank: washing out the dirty from the material--- Friction washing loader machine: friction washing the material and loading out the material--- Dewatering machine: remove the water from the material--- Hot air drying system: drying the material--- Storage hopper: collect the material--- Control cabinet: control the line on/off (famous brand such as Schneider, Siemens, etc.
Detailed Photos
Plastic Crusher Machine
Function: crushing the material into small pieces >With water inlet can do wet crushing
>Use big roller bearing ensure durable use
>With heavy duty pulley easier for machine working
>Bearing house is installed outside of the chamber so no dirty goes inside which prolong the lifespan
> Upside hopper is covered by shelter so no material popped out.
>Blades adopt famous brand SKD-II or D2
Friction washing loader
Function: Friction washing the material and loading up it >With water injection system into the rotor for better washing and also clean the screen mesh
>The screen is with fast clip to tight and loose for easy maintenance
>Up and down both mounted with bearing design ensure low maintenance and long use life
>Machine washing part is made by stainless steel 304

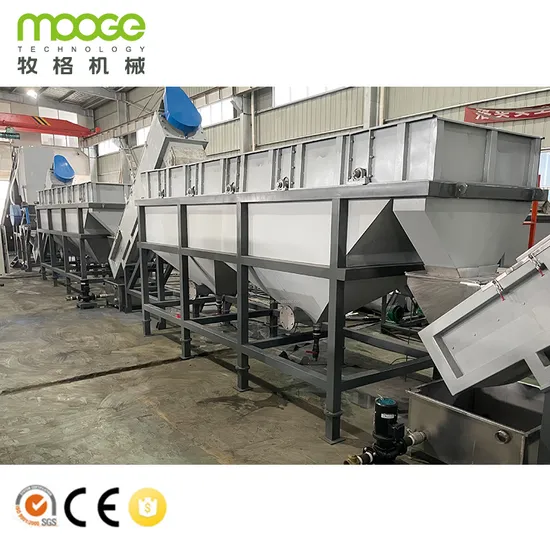

Floating washing tank
Function: Floating washing separate the sand, soil and other dirties
>The roller is specially made can have more washing for flakes but less water take out
>Tank bottom with double conical design to leave the dirty down in it, when change water drain out all the dirty with water
>Machine washing part is made by stainless steel 304
Horizontal dewatering machine
Function: take out dirty and remover water from the material >With high rotary speed 1500rpm
>Roller bearing is fixed outside of the rotor for durable use
>Inside with mesh layer, mesh diameter size: 3mm
>With water spray system to clean the mesh
>Outside cover drum is made by stainless steel with 3mm thicknes
Hot air drying system
Function: with hot air further drying the plastic film/bags scraps
>Heating by electricity
>Pipe is made with bigger and more thickness elbow for longer use
>Pipe is made by stainless steel with 3mm thickness
>Can select two sets of this pipe drying system to arrange one by one for better drying effect
Related Product
Double stage die-face cutting plastic pelletizing line Double stage strand-cooling cutting plastic pelletizing line
Company Profile
JIANGSU MOOGE MACHINE CO.,LTD is a professional manufacturer specialized in designing, developing, manufacturing, and servicing a complete line of plastic recycling machine with over 10 years' experience.
Our high quality machine and good service are all well received by numerous customers from domestic and overseas. We are expecting to make contribution to the global environmental protection and seek the long-term business partner all over the world.
Packaging & Shipping
• For the loose cargo we will packing by wooden box
• For the full container loading we are packing the machine by film and some on pallet accordingly
• We can ship the goods by air or by sea
• We will send pictures of cargo loading to our client to check and keep recording
• We can send cargo to client's warehouse to loading
After Sales Service
• Pre-sale: we give our client the detailed technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.
In order to match your requirement and provide you a proper quotation, please Let us know:
• What material do you want to recycling? PE film? PP woven bag? HDPE/PP bottle? or other plastic?
• What capacity(kg/h) do you want?
• What is the final size(mm) of flakes you want?
• Other special requirements about the PE PP waste plastic film crushing washing recycling line you want.

---
