Basic Info.
Model NO.
photovoltaic support forming machine
Tile Type
Galvanized Steel
Transmission Method
Machinery
After-Sales Service Provided
Service Machinery Overseas
Roller Material
45#Steel Chrome Plated
Cutting Blade Material
Cr 12 High Grade Steel
Cutting Type
Hydraulic Cutting
Transport Package
Wooden Box
Packaging & Delivery
Package Size
500.00cm * 120.00cm * 130.00cm
Package Gross Weight
6000.000kg
Product Description
Solar photovoltaic bracket roll forming machine is a full automatic line to produce the solar photovoltaic bracket strut ,which is a special bracket designed for placing, installing and fixing solar panels in solar photovoltaic power generation system. General materials include aluminum alloy, carbon steel and stainless steel.The products related to solar support system are made of carbon steel and stainless steel. The surface of carbon steel is hot-dip galvanized and will not rust after 30 years of outdoor use. The solar photovoltaic support system is characterized by no welding, no drilling, 100% adjustable and 100% reusable
Product Description

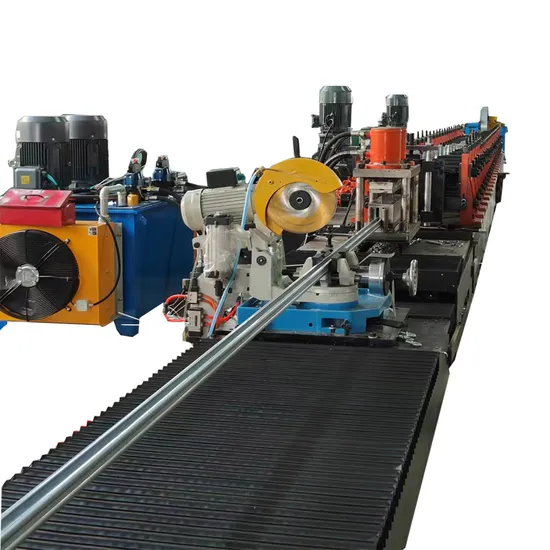

Solar photovoltaic bracket roll forming machine is a full automatic line include the decoiler ,leveling and feeding device ,roll forming machine ,straightening device ,tracking cutter system ,electric output table .the whole line is about 35meters ,the normal size it can produce - 41*41/41*52/41*62/41*72,thickness 2-3mm ,can be also customized.
Product Details
Solar photovoltaic bracket roll forming machine details: Feeding material: Q195 / Q235 steel strip and galvanized coil
Thickness of the plate:2-3mm
Diameter of the axle :Φ80mm
Rolling stages:23stages
Productivity: 15-20m/min
Total power: 30 kw machine motor
Voltage:380V 50Hz 3phase or as requirement
Side board:20mm
Cutting blade: Cr12 with heat treatment
Cutting system: cutting system after forming
the Components Solar photovoltaic bracket roll forming machine :
NO.
| Name
| Unit
| Qty
|
1
| manual Decoiler
| Set
| 1
|
2
| leveling and feeding device
| set
| 1
|
3
| roll forming machine
| set
| 1
|
4
| electric system
| set
| 1
|
5
| tracking cutting system
| set
| 1
|
6
| punching machine
| set
| 1
|
7
| output table
| set
| 1
|
Applications
Related Products
if thickness is 2-2.5mm,can choose below type roll forming machine
