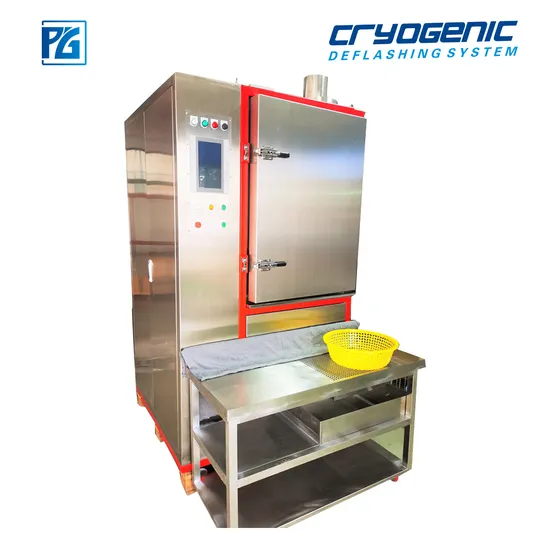

Nanjing Pege Cryogenic Deburring and Deflashing System Pg-40t to Pg-150t

Product Description

Introducing the premier Cryogenic Deflashing and Deburring Systems by Nanjing Pege, ranging from models PG-40T to PG-150T. Proudly crafted in China, these systems are designed to deliver precision and reliability.
Product Description PROCESSING PRINCIPLE
Our state-of-the-art cryogenic deflashing technology utilizes an advanced system where rubber or plastic parts are meticulously placed into a machine chamber. These parts are subjected to extremely cold temperatures using liquid nitrogen, followed by tumbling in a barrel and a polycarbonate media blast.
The burrs and flashes, having a significantly thinner surface area compared to their mass, freeze rapidly and become brittle. This swift freezing, combined with the powerful tumbling action and media impact, effectively eliminates burrs without compromising the integrity of the parts.
Upon completion of the process, parts are safely brought back to room temperature. This cryogenic deburring method ensures parts are impeccably clean, free from dust or residues, with an impressive 100% burr removal.
Cryogenic deburring and deflashing are the perfect solutions for an array of applications including die cast metal parts, intricate rubber components, precision elastomeric parts, medical devices, and microelectronic parts.
SPECIFICATIONS

TECHNICAL INFORMATION
MODE	PG-60T	PG-80T	PG-100T/120T	PG-150T
MACHINE PHOTO
SIZE(L*W*H)	1000*1000*1950MM	1100*1200*2000MM	1200*1250*2200MM	1300*1350*2250MM
WEIGHT	700KG	850KG	1000KG	1500KG
POWER	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz
ELECTRICTY	6Kw*3Ph	7Kw*3Ph	8Kw*3Ph	9Kw*3Ph
TEMPERATURE	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC
PRESSURE	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa
BARRAEL CAPACITY	60L	80L	100L or 120L	150L
EFFECTIVE CAPACITY	20L	30L`	40L`	50L`
WHEEL SPEED	3000rpm - 7200rpm	3000rpm - 7000rpm	3000rpm - 7000rpm	3000rpm - 7000rpm
COOLING MEDIA	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen
OPETATION MODE	Touch Screen	Touch Screen	Touch Screen	Touch Screen
FRAME	SUS304 WITH SOME RED PAINT ON CERTAIN AREA
WHEEL DIAMETER	AL φ250mm	AL φ300mm	AL φ350mm	AL φ350mm
BLASTING SPEED	105.7m/s	123.3m/s	143.3m/s	143.3m/s

Country Shipped USA, Mexico
Australia, New Zealand
Poland, Croatia, Slovenia, Hungary, Greece
Russia, Malaysia, Thailand, Vietnam, India
MACHINE INNER COMPONENTS PICTURES PROCESS RESULT COMPARISON OPERATION PROCESS WHOLE SYSTEM DRAWING
APPLICATIONS
A. O-rings and irregular rubber parts of various materials and sizes.
B. Microelectronic product components.
C. Precision elastomeric parts.
D. Precision injection molding plastic parts.
E. Research and development part runs.
F. Die casting products such as zinc, aluminum, and magnesium alloy components. ADVANTAGES
Cryogenic deflashing offers numerous advantages over manual and traditional deflashing techniques.
The process preserves part integrity and maintains critical tolerances.
Being a batch process, it significantly reduces the cost per piece by processing multiple parts simultaneously.
Cryogenic deflashing prolongs mold life. Instead of costly repairs or replacements, parts molded at the end of their lifecycle can be effectively deflashed.
This process is computer-controlled, eliminating the variability introduced by human operators.
It ensures consistent, high-quality results across different batches.
Cryogenic deflashing is a non-abrasive process.
The cost per part is notably lower compared to alternative methods.
MACHINES IN OUR CUSTOMER'S FACTORY

---
