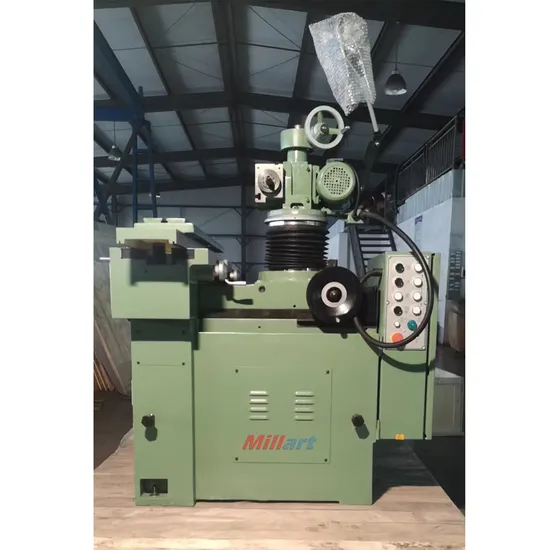

Ma6025 Mya6025 Mga6025b Mgya6025b Universal Tool Grinding Machine, Tool Grinder Machine

Product Description

Product description:
Technical parameter :
Feature :
The multi-grinder ranges from external and internal cylindrical grinding to taper grinding.
It also allows tool grinding, (sharpening of cutters reamers, and turning tools) and is suitable for light surface grinding jobs
1.The machine combines the functions of universal external grinder and universal cutter grinder. It performs with super quality such as grinding internal cylindrical and taper workpiece, flat, vertical and inclined surfaces and slots. It can also readily undertake sharpening cutters such as various milling cutters, reamers, pinion cutters and lathe and supplied upon ordering. It can also be used for sharpening straight fluted hobs drill,etc
2.The wheelhead spindle of the machine runs perfectly well, its adjustment are easy. The work table drive many be either hydraulic or manual controlled hydraulic serve.
3.You would find it an indispensable equipment for your tool shop, repair shop, research units and small and medium scale machinery plants.
Specification:

Specifications	MA6025	MYA6025	MGA6025B	MGYA6025B
Distance between workhead and tailstock centers	545mm
Distance between left tailstock and right tailstock centors	650mm
MAX Workpiece diamrter	250mm
Height of centers	130mm
MAX length for cylindrical grinding	270mm
Work table travel by hand	400mm
Work table travel byhydraulically		400mm		400mm
Swivel range of table to either side	±45°
Vertical cross silde travel	230/250mm
Vertical movement spood of wheelhand by power	280mm/min
Max/Min distance between table surface and grinding spindle	298/48mm
Honzontal seivel range of wheelhead	360°
Grinding spindle inclinable	±15°
Grinding spindle speed	2700,4000,5500rpm
Total power	3.15KW
Overail dimensions	1340×1320×1320mm
Size of case	1820×1550×1640mm
Gross Weight /Net Weight	1300/1100	1300/1150	1300/1150	1350/1250
Working accuracy	Working accuracy
	0.005mm		0.003mm
	Surface roughness
	Ra:0.63μm		Ra:0.32μm

Standard accessories:

1 set-Universal workhead

1set-Left-head tailstock

1set-center gauge

1set-wheel dresser

3set-wheel guards

1set-right hand tailstock

1 set-Universal toothrest

1 set-Machine vice

1set-wheelbalancing stand

5 set-grinding wheels and Frange

1 set-Extender spindle

Optional accessories

1 set-Taper reamer grinding attachment

1 set dril grinding attachment

1 set-Extended grinding head

14 piece-spring collet chuck

1 set-wet grinding attachment

1 set-Duse extractor

1 set-Three-jaw chuck

1 set-circulay permanent-magnetic chuck

1 set-Balance frame

1 set universal wheel dresser

1 set double rectangular permanent-magnetic chuck

1 set The workbench micro feed mechanism

1 set-After the ball end mill knife surface grinding accessories

1 set-Universal mill frame

Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
