Colo Complete Powder Coating Equipment for Alloy Wheel Manual Painting

Product Description

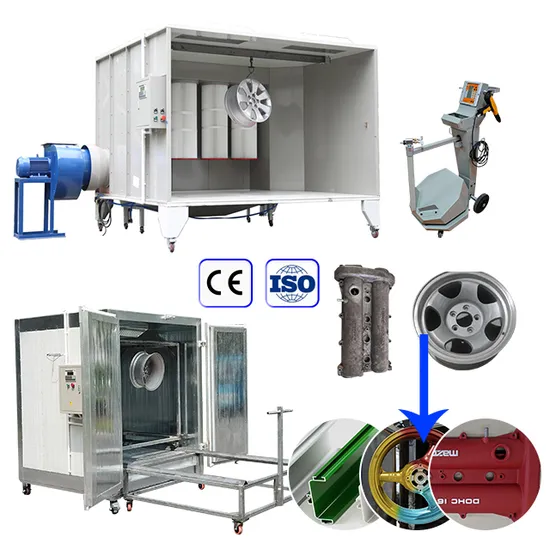

COLO Complete Powder Coating Equipment for Alloy Wheel Manual Painting This package is for small and medium parts finishing, features economical, efficient in manual application.
like car wheel painting including Powder Coating Painting Booth, Electric Powder Curing Oven, and manual powder coating gun.
Also if you need sandblasting machine ,we can also provide
Product Description
Step 1 :use powder coating machine ,do spray work at powder coating booth
Manual Powder Coating Spray Painting Booth Specfication :

Model	COLO-S-2315
Booth Type	Closed
Operator dimensions	D1500*W2300*H1500mm
Overall dimensions	D2070*W2750*H2180mm
Weight	450kg
Power supply	Electric
Nominal power	4kw
Voltage	380V 3PHASE
Frequency	50-60Hz
Filters	Polyester
Filters count	4(325*900)
Filters hang type	easy for change
Filter cleaning system	Pneumatic
Air consumption	6677-13353m3/h
Warranty	12 months

Benefits:
Operator Safety: easy operation ,beginner even can use it well
Environmental compliance:With Powder coating booth With Recovery System: Automatic powder collecton Bin. It's work with Air pump,can be controlled by PLC control system .when press down ,can get the recovery powder .After seiving ,can reuse the powder .economic .
Production capacity and operational efficiency
longer lasting, more durable, quieter
Filter: Easy for change; collect powder
Fan motor keep the powder stay in booth
Powder coating machine
Top intelligent powder coating machine,can storage 22 programms .
also use digtal valve control ,LED Panel, can ensure precise powder output
echnical Data

Electrical Data
Power Range	220V/110V
Frequency	50HZ/60HZ
Temperature range in use	-10 ºC+50 ºC
Powder Gun
Gun weight	500G
Rated output voltage	24VDC
Input voltage	- 200kv
Maximum output current	180Ua(max
Maximum output voltage	0-100KV (adjustable)
Maximum powder injection	600g/min
Polarity	negative (-)
Pneumatic Data
Maximum input-air pressure	10kg/cm
Optimum input-air pressure	6kg/cm
Minimum input-air pressure	4kg/cm
Maximum oil vapor content of compressed air	1.4g/N m3
Maximum compressed-air consumption	13.2 m3/h

Powder coating oven
Step 2 :curing wheels ,in 1864 electric oven .normally 15-20 minutes ,180 degree

powder coating oven specification

Worksize dimensions	1600width x 1800 height x 1400 depth
Overall dimensions	1900 width x 2200 height x 1700 depth
Power supply	Electric/ 18kw
Voltage/Frequency	110V/220v(50-60hz)
Warm-up time	15-30 min. (180° C)
Temperature stability	< ± 3-5°C
Temperature max.	250° C
Motor power	0.75kw
Circulation/ Air flow	Vertical ,Variable through holes on the walls
Ventilation performance	805-1677m3/h

Products Details
1.Great fan motor One set of heat resistant fan for circulating the hot air,maintains a uniform temperature in oven
2.use great electricity tube ,take short time to heat.
3. control, accurate cure timing and helps improve fuel efficiency. PLC control ,easy using
4.Optional insulated floor is comprised of 100 mm thick layer of insulated fibres and a steel plate cover, which allows trolleys to be used to carry products in and out of the oven.
5.with inner trolley &outer trolley
6.use great rock wool materail

Packaging & Shipping

Company Profile
Certifications

Application

Customer Visiting&ExhibitionWe have went to many exhibitions durning our 11 years running .Also many customers visit our company ,check the goods and discuss to expand our business .


FAQ

Q1.How to order powder painting machine?
A:send me inquiry - i will make proforma invoice -you can pay to our bank account or use credit card-after getting payment ,will ship to you.
Click Here to send me inquiry .
Q2:How long does it take for getting this powder coating equipment?
A: we need take 25-30 days for manufaturing
Q3:Which express you use ?
A: for this set ,we will ship via sea
Q4:What is the warranty?
A:1 year warranty.but if you have any problems in your long time using ,you can contact us anytime
Q5:What about replacement spare parts?
A:we provide spare parts. so just send us email ,tell us the order quantity,then we will send invoice and ship spare parts to you
Buying Guide
We can ship this products in 30 working days after payment .sea shipping to your contry .

---
