| US$456.00-577.00 | 1 Piece (MOQ) |

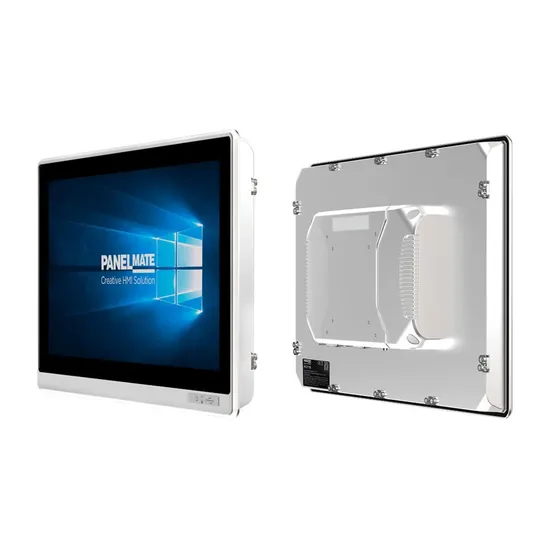

| Product Name | 15.6" Embedded Industrial Fanless Panel PC |
| Touch Screen type | Tempered glass without touch |
| Screen optional | 1.Single point resistive touchscreen 2.Multi-point capacitive touchscreen 3.Tempered glass without touch |
| Material | Aluminum-magnesium alloy Housing |
| Waterproof &Dustproof | IP65 |
| Display Type | 15.6" WXGA TFT LCD |
| Resolution | 1366*768 |
| Aspect Ratio | 16:9 |
| Brightness | 400cd / m2 |
| Contrast Ratio | 500:1 |
| Product Size(W x H x D) | 396 x 263 x 62.5mm |
| CPU | Intel Celeron 3855U/3865U |
| CPU optional: | Intel Celeron 3855U/3865U,J1900,Intel Apollo J3455, Intel skylake i3 6100U/7100U, Intel skylake i5 6200U/7200U, Intel skylake i7 6500U/7500U |
| RAM | 4G |
| SDD | 128G |
| Rear I/O | HDMI*1 |
| GLAN*2 | |
| USB*4 | |
| COM*2 | |
| Remote Control Power Switch | |
| Power Supply Port | |
| Front I/O | USB Port |
| Mounting type optional | Embedded, Wall-mounted, Desktop, VESA mounting |
| Operating System | Win 7, WES 7, WIN 10, Vxworks, Linux |
| Power Input Wide Range | DC 9~36V |
| Power | 20W |
| Operating Temperature | -20~70ºC (-4~158ºF) |
| Storage Temperature | -20~70ºC (-4~158ºF) |
| Other features: | 1.Total 11 Screen Sizes Optional:10.1"/10.4"/12.1"/12.2"/15"/15.6"/ 17"/18.5"/ 19"/ 21.5"/27" 2.Large aluminum fins design to ensure the reliability and heat dissipation 3.According to configuration of mainboard,it's equipped with 2*Intel i210AT Ethernet ports,4*USB ports 4.Extensible WIFI 4G/5G network 5.Customized |
| Certification | CE/FCC Class A |
| FAQ: |
| Q: Are you a manufacturer or a trading company? |
| A: Yes,we are a professional manufacturer engaged in R&D and production of HMI products over 13 years. Our advanced technology,equipment and efficient management ensure excellent quality and competitive price. |
| Q: Where is your factory? |
| A: Our factory is located in Shanghai ,China,which the traffic is convenient and close to Pudong and Hongqiao International Airport. It is easy for customers to visit and also for goods quicker shipping. |
| Q: Can I order samples? |
| A: Yes,We can make the samples according to your requirements. You should pay the sample fee and shipping fee. |
| Q:How to cooperate to develop customized products? |
| A:Decide for yourself how much performance you need, how much RAM, which hard disk or SDD size, which display size and also which interface are needed in the industrial PC, panel PC or others. Should Windows be running on the system or Linux, or do you want to install the operating system in-house? With us your specific desired confirguation can be put together completely basen on your specification. if you are unsure about minimum requiremnts, our product consultants are happy to help you.Simply send the requirements of your desired configuration to us by e-mail, you will receive your offer for desired configuartion within 1-2 working days. |
| Q: What is the lead time for sample orders and bulk production orders? |
| A: Normally, it is 5-7 working days basen on standard product.For customized products,it will be taken around 20-30 days, or to be negotiated . |
| Q: What is term of payment? |
| A: For sample order,100% T/T in advance |
| For bulk order, 30% deposit in advance, 70% balance before shipment |
| or L/C at sight. |
| Q: How about the after-sale service? |
| A: Our products have a 2-years product warranty. |
