Multifunctional Granule Filling Machine Fully Automatic Weighing Pouch Packing Machine For Pet Dry Foodstuff

Product Description

Product Description
Multifunctional Granule Filling Machine Fully Automatic Weighing Pouch Packing Machine For Pet Dry Foodstuff
Product Description
ApplicationIt is suitable for weighing and packing grain, stick, slice, globose, irregular shape products such as puffy food, snacks, candy,jelly,seeds,almonds, chocolate, nuts, pistachio, pasta, coffee bean, sugar, chips, cereals, pet food, fruits, roasted seeds,frozen food,vegetable,fruits, small hardware, et
Product parameter

Model	ZH-O1
System Output	≥ 8.4 Ton/Day
Packing speed	30-70 Bags / Min
Packing Accuracy	± 0.1-1.5g
Bag size(mm)	(W) 60-200 (L)60-300 for 420VFFS(W) 90-250 (L)80-350 For 520VFFS (W) 100-300 (L)100-400 For 620VFFS (W) 120-350 (L)100-450 For 720VFFS
Bag type	Pillow bag, standing bag (gusseted), punch, Linked bag
Range of measuring (g)	5000
Thickness of film (mm)	0.04-0.10
Packing Material	laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET,
Power Parameter	220V 50/60Hz 6.5KW

System unite1.Z arm conveyor/Incline conveyor2.Multihead weigher
3.Working Platform
4.Finished bags conveyor
5.Check weigher/Metal detector
6.Rotary table
Main FeaturesFor weighing machine
1.The amplitude of vibrator can be auto-modified for more efficient weighing.
2. High precise digital weighing sensor and AD module have been developed.
3. Multi-drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper.
4. Material collecting system with function of unqualified product remove, two direction discharge, counting, restore default setting.
5. Multi-language operation system can be selected basing on customer's requests.
For packing machine
6.Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.
7. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.
8. Single or double belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic.
9. Perfect alarm system to make problem solved quickly.
10. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.
11. Machine can make pillow bag and standing bag (gusseted bag) according to customer's requirements. Machine also can make bag with punching hole & linked bag from 5-12 bags and so on.
Detailed Images
We usually use multihead weigher to measure the target weight or count pieces.
Machine type:4 head, 10head ,14 head,20 head
Machine accuracy :± 0.1g
Material weight range: 10-5kg
Right photo is our 14 heads weigher

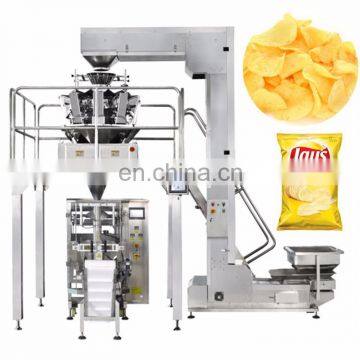

Full packing machine with multihead weigher,metal detector and check weigher Language:English ,Spanish ,korean and other language you need
