Injection Blow Molding System for Plastic Components

Product Description

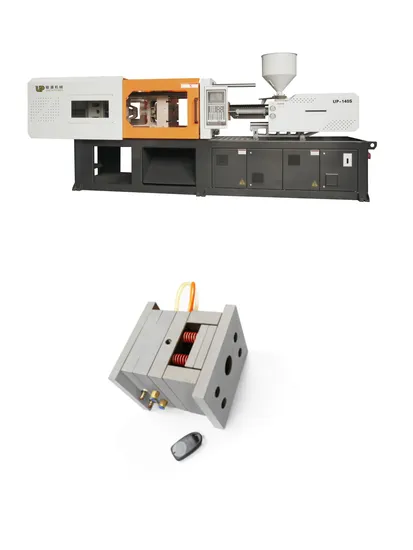

China Servo Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd.
Product Description:
Our China servo injection molding machine offers advanced features for precise and efficient molding processes. Here are some key specifications:
Modulus of Capacitance: Includes position, size, and maximum allowable modulus of capacitance, and minimum closure thickness of the injection molding machine guide pillar (Green column).
Nozzle Parameters: Spherical diameter of the nozzle, nozzle aperture, nozzle outer diameter, maximum nozzle extension length, and positioning aperture.
Code Mold Parameters: Code mold hole and slot size for precise molding.
Ejection Mechanism: Provides details on the position of the ejection point, diameter of the ejector rod, ejection force, and ejection stroke if necessary.
Mold Opening Stroke: Includes information on mold opening stroke and maximum opening distance for efficient operation.
Experience superior molding capabilities with our standard injection molding machine designed to meet your production needs.

Technical Parameters	Model UP-140T
Injection Unit	A	B	C
Screw diameter (mm)	38	42	45
Shot Volume (cm3)	215	260	302
Injection weight (g)	194	237	272
injection pressure (Mpa)	186	152	132
Screw speed (rmp)	215
Clamping Unit
Clamping force (KN)	1400
Open stroke (mm)	380
Max Mold height (mm)	450
Min Mold height (mm)	135
Space between tie bars(mm)	420*420
Ejector force (KN)	46
Ejector stroke (mm)	120
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	13(14)
Heating power (KW)	8.2
Machine dimension (M)	4.2*1.2*1.9
Machine weight (T)	3.4
Oiltank cubage (L)	190

---
