Wood Veneer Peeling Lathe Machine Blade Peeler for Plywood Line

Product Description

Wood Veneer Peeling Lathe Machine Blade Peeler for Plywood Line
Product Description

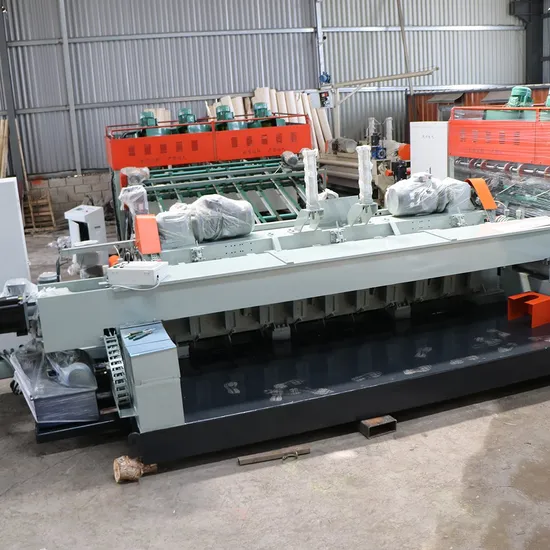

Automatic CNC Spindleless veneer peeling machine
1.Touching screen control system. You can set all kinds parameters in this system, and language showing in this controlling screen, can be translated into your country's own language.
2. The linear speed of host machine and thickness of the core veneer can be adjusted.
3. Servo feeding motor.
4. Automatic lubrication system. Ensure machine running stable, so the using life of the machine is extended.
5. Feeding system is designed into leading screw and screw nut which is made from alloy. It guarantee feeding system synchronizing go forward and backward, so the veneer is in same thickness and smooth surface.
6. Min. diameter of the wood core after peeling is 24mm, can max. help save wood log material.
Product Parameters

No	Veneer Peeling Machine
1	Type	4feet (1300mm)	8feet (2600mm)
2	Model	GT-014feet	GT-018feet
2	Cutting Size(Diameter*Length)	500*1300mm	500*2600mm
4	Min Residual Diameter	28mm	32mm
5	Max Stroke of Tool Slide	500mm	450mm
6	Cutting Thickness	0.5~3.6mm	0.5~3.6mm
7	Cutting Speed	50m/min	48-65m/min
8	Power	21.5KW	60 KW
9	Peeler blade(L*W*H)	1400mm*180mm*16mm	2700mm*180mm*16mm
10	Clipper Size(L*W*H)	1400mm*90mm*12.7mm	2700mm*90mm*12.7mm
11	Dimensions (L*W*H)	4100mm*2150mm*1600mm	6100mm*2200mm*1650mm
12	Total Weight	About 6000KG	About 11000KG

Detailed Photos

Product Details
1. Automatic Servo Motors.
2. High speed and adjustable speed from 40- 110meter/minute.
3. Double feeding port.
4. Both side of core veneer will be smooth.
5. High thickness of steel frame makes the weight heavy.
6. Voltage can adjust according to different countries situation.
Our Advantages:1. The operation is simple.
2. High work efficiency.
3. To save time and effort.
4. Long service life.
Running guide rail:CNC cutting.
Quenching increases the hardness.
Unlimited service life.
Avoid the wear and tear of the common lead screw,guaranteen
machine operation deviation,veneer width and thickness.
Automatic hydraulic installation blade, more convenient blade replacement, save more time to change the knife.
Related Product
We are one of the leading manufacturer and exporter of a durable range of Veneer & Plywood Machine, Particle board production line. Some of our machine includes plywood core veneer production line, Veneer Dryer, Hot Press, Cold Press, Sanding machine, Panel turnover machine, Automatic DD Saw and Glue Spreader, wood shredder, and other woodworking machinery.
Packaging & Shipping

Company Profile
WHO WE ARE:GTCO Machinery company is located in Linyi --- a commercial and logistics city. After more than 20 years' continuous innovation and development , Machinery has become an outstanding enterprise along with strong power , advanced technology and excellent quality Products are sold worldwide , exported to Asia , Europe , Africa and Oceania... etc
WHAT WE DO:We have strong technical strength, talented people, and constantly introduces various automation and semi-automatic products. Now the national key promotion panel automation transformation production line, plywood production line, veneer machinery .automatic edge cut machine ,veneer peeling production line, veneer dryer, automatic veneer cutting machine, hot press, cold press, lifting platform, automatic putty- scraping machine and glue spreader etc. 2020 years ,we join in the new design and construction machine - stone crusher ,the main product have PE Jaw Crusher, PF Impact crusher , CS Cone crusher Feeder and screen Mobile crusher. etc.We always right here waiting for service to you !Welcome to visit us!
Welcome to contact for exact model and competitive price!
