New Design Wmd25V Plus Vertical Milling and Drilling Lathe Machine Milling Machine

Product Description

MODEL	WMD25V	WMD25V PLUS
Max tapping	16mm
Maximum Drilling Diameter	25mm
Maximum face milling diameter	63mm
Spindle taper	MT3	R8
Spindle stroke	50mm
Workbench size	500×180mm	700×180mm
Worktable stroke (X,Y)	285×160mm	480×160mm
T-slot size	3×12mm
Spindle speed change	Variable
Spindle speed range	100~2500RPM
Rotate the head left and right	±90°
Distance from spindle center to column	160mm
Distance from spindle end face to table	370mm
Motor	1.1KW
Machine size	750×580×940mm	950×580×940mm
Package Size	600×540×910mm	750×710×930mm
Gross weight	115kg	130kg
Net weight	105kg	115kg

Features
1.Stepless speed regulation can make processing more convenient
2.The main shaft bearing adopts high-precision tapered roller bearing
3.Single speed belt drive is more quiet and easy to operate.
4.The spindle box can be tilted by ± 90 degrees
5.Precision inching spindle feed
6.Spindle depth electronic ruler, more accurate display of drilling depth
7.Optional larger workbench, providing greater production capacity
8.Dovetail guide rail is equipped with adjustable taper inserts, which is wear-resistant and heavy-duty.
Size/Weight
The appearance/package size of the product is measured manually, and there is a small error. It is normal, and the specific object shall prevail.
Machine package size 750x710x930mm
Net weight/gross weight of machine(excluding floor cabinet) 115/130KG
Identification

A. Drawbar Cap and Drawbar	H. Longitudinal Table Stop
B. Vertical (Z-Axis) Handwheel	I. Table Longitudinal Travel Lock
C. Quill Feed Lever	J. Longitudinal (X-Axis) Handwheel
D. Vertical Travel Lock	K. Cross (Y-Axis) Handwheel
E. Fine Feed Lock Knob	L. Table Center Stop
F. Chip Guard	M. Table Cross Travel Locks
G. Drill Chuck	N. Longitudinal (X-Axis) Handwheel

Product display
Details introduce

A. Emergency stop switch	G. Spindle Depth Display INCREASE Button
B. Spindle RPM Readout	H. Spindle Depth Display DECREASE Button
C. START/Emergency Stop Buttons	I. Spindle Digital Readout Power Button
D. Variable Spindle Speed Knob	J. Spindle Depth Display
E. Spindle Direction Selection Knob	K. Digital Readout ZERO Button
F. IN/MM Unit Selection Button	L. Digital Readout Battery Cover & Battery

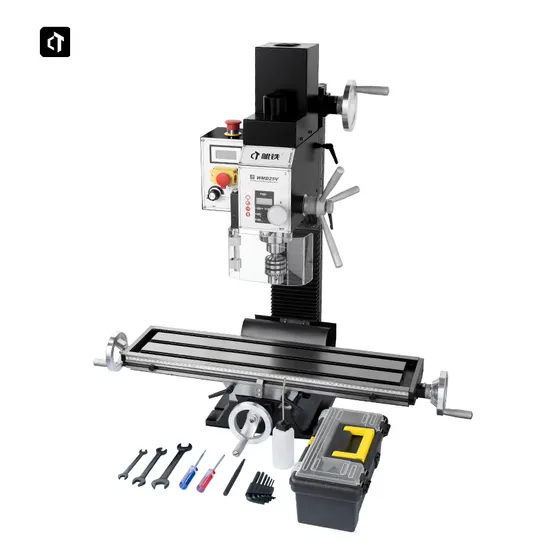

Standard Accessories(Attached in Machine)

---
