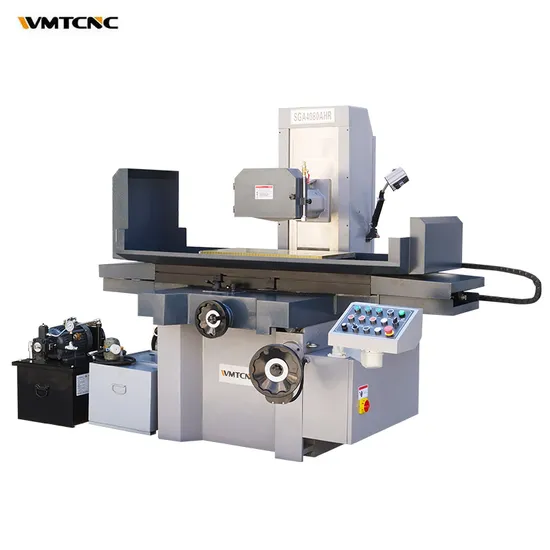

WMTCNC small high precision china surface grinding machine SGA4080AHR metal grinder

Product Description

Product Description
WMTCNC small china surface grinding machine SGA4080AHR metal grinder machine main features:
AH: X axis (longitudinal) electric
Y axis (crossz) hydraulic
Z axis manual
AHR: X axis (longitudinal) electric
Y axis (crossz) hydraulic
Z axis lifting motor rapid up and down
AHD: X axis (longitudinal) electric
Y axis (crossz) hydraulic
Z axis PLC control, servo drive

Specification		SGA-4080AH/AHR/AHD
Table size (L×W)		406×800mm
Max. longitdinal travel		910mm
Max. cross travel		450mm
Max. distance from spindle center to table		550mm
Magnetic chuck size		400×800mm
Speed of table longitudinal movement		7~23m/min
Table transverse movement	Auto feed	0.1~8mm/min
	Rapid speed	990mm/min
	Feed of handwheel	0.02mm/div.
Wheelhead vertical movement	Auto feed	-(H/R mode)0.005/0.1/0.02/0.03/0.04/0.05(Only for D mode) mm/stroke
	Rapid speed	-(H mode)610 (Only for R mode) 480 (Only for D mode) mm/min
	Feed of handwheel	0.005mm/div.
Grinding wheel	Speed	50Hz 1450rpm 60Hz 1750rpm
	(OD×W×ID)Size	Φ350×40×Φ127 mm
Spindle motor		5.5kw
Hydraulic motor		2.2kw
Cooling pump motor		0.09kw
Elevating motor		-(H mode) 0.25 (R mode) 0.75 (D mode,servo motor) kw
Cross feed motor		0.04kw
Max loading capacity of table (include magnetic chuck)		500kg
Total rated power		9kw
Surface roughness		Ra<=0.25 μm
G.w		3600kg
Packing size (L×W×H)		2720×2265×2250mm

Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
