Product Details
Product Description
Product Description

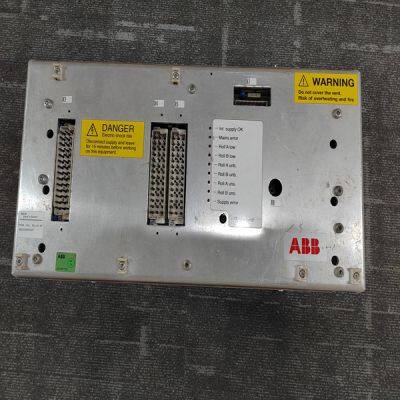

Brand:ABB
Type:PFSA140 3BSE006503R1
Origin:the Swiss
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Features Analog I/O extension module • QAIO 16/4-V 16 voltage inputs ±10 V; or QAIO 16/4-A 16 current inputs ±20 mA • 4 voltage outputs, ±10 V • 1 reference voltage output +10 V • Connection via E-bus BASIC CIRCUIT DIAGRAM, ANALOG INPUT INPUTS/OUTPUTS • 16 voltage or current inputs: The input channels are converted in multiplex operation. The measurement range is ±10 V (QAIO 16/4-V) or ±20 mA (QAIO 16/4-A) • 1 reference voltage output: The reference voltage source provides a short circuit protected voltage of +10 V • 4 voltage outputs: The output channels provide a voltage signal in the range of ±10 V. The maximum output current is 5 mA (overload protection)The configuration of the analog I/O is carried out per software via the central control configuration in the Moog Axis Control Software (MACS) development environment. MODULE STATUS LEDS On the front, 4 LEDs provide information about the status of important module functions.ACTUATION The I/O of the analog extension module is actuated directly from an MSC or MSC II via the extension bus (E-bus). E-BUS One MSC or MSC II can be extended with a maximum of 7 modules (e.g. QAIO or QDIO).
TECHNICAL DATA Module Data Analog I/O extension module Order number QAIO 16/4-V: D137-001-007; QAIO 16/4-A: D137-001-006 Connection to M3000 modules Via E-bus (5 MHz) Connection technique Plug-in terminal strips for screwing or clamping Connection of the I/O 3-conductor front wiring Mounting Mounting rail NS 35/7.5 according to EN 50022 (DIN-top hat rail) 4 module status LEDs Module functions and diagnosis Dimensions, W x H x D 124 x 170 x 85.5 (attachment dimension: W = 113 / 118.5) mm; 4.88 x 6.69 x 3.37 (attachment dimension W = 4.45/4.67) inch Temperature range +5 °C (+41 °F) to +50 °C (+122 °F) (operation) and -25 °C (-13 °F) to +70 °C (+158 °F) (storage) Relative air humidity 10 % to 95 % (non-condensing) Standards Interference emission / immunity EN 61000-6-4 / EN 61000-6-2, industrial portion Protection class / protection system III / IP20 Insulation strength IEC 61131-2; test voltage 500 V DC Energy Supply Voltage supply of module electronics 24 V DC (18-32 V DC) SELV pursuant to DIN EN 60950-1 Current consumption of module electronics Max. 0.3 A Voltage supply of the analog I/O Internally supplied via DC/DC converters Potential separation Yes, opto-decoupled towards E-bus; No separation between energy supply and analog channels Protection against reverse polarity Yes
>>
