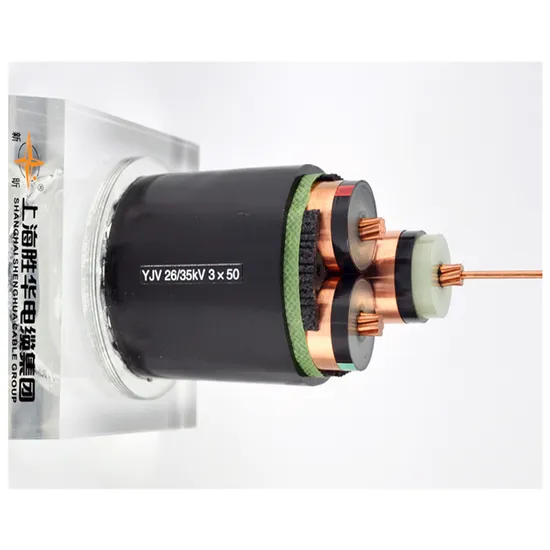

Direct Burial XLPE Insulated Power Cable for Underground Networks

Product Description

Product Name:YJY XLPE insulation LSOH Sheathed Flame retardant Power Cable
Description:
CU/XLPE/LSOH, IEC 60331
IEC 60502, IEC 60227, IEC 60331, IEC 601034, IEC60754 GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
CE, CCC, KEMA
Constructions
Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation: XLPE/A
Inner Covering: LSOH
Sheath: LSOH , black
Note: Insulation color as per standards or customer requirement
Applications
Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.
Standards
International: IEC 60502, IEC 60227 IEC 60331, IEC 601034
China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 0.6-KV
Max. Conductor Temp.: normal (90ºC), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250ºC )
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0ºC
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%

Product Name	YJY XLPE Insulation LSOH Sheathed Flame Retardant Power Cable
Model/Standard	CU/XLPE/LSOH, IEC 60331, IEC 60502, IEC 60227, IEC 60331, IEC 601034, IEC 60754, GB/T 12706-91, GB306.1-2001, GB/T18380.3-2001, CE, CCC, KEMA
Conductor Material	Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation Material	XLPE/A
Inner Covering	LSOH
Sheath Material	LSOH, black
Insulation Color	As per standards or customer requirement
Rated Voltage	0.6 kV
Max. Conductor Temperature	Normal: 90°C; Short circuit (5 seconds): Maximum conductor temperature not exceeding 250°C
Min. Ambient Temperature	Cable should be preheated if ambient temperature is below 0°C
Min. Bending Radius	Single-core cable: 20(d+D)±5%; Multi-core cable: 15(d+D)±5%

---
