Vt Type 3/4 Ton Lever Manual Chain Hoist

Product Description

VT type 3/4 ton lever manual chain hoist
Vt leverblock features as belows: 1. capacity from 250kg to 9ton .
2. lifting height 1.5meters or as customers' request .
3. hoist covers are made of high strength alloy steel , and impact-resistance, well safety the inside parts .
4. upper and lower hooks are made of high strength casted alloy steel and heat treated , which prevent the hooks breaking even when overloading , with safety latch .
5. Load chain : G80 high strength alloy steel .
6. overload safetyion is optional .
Specifications of VT lever block as belows:

Modle		VL0.75	VL1.5	VL3	VL6	VL9
Capacity TONS		0.75	1.5	3	6	9
Standard lift M		1.5	1.5	1.5	1.5	1.5
Running test load KN		11	22	44	73.5	110
Headroom(drawn close up) Hmin MM		315	365	490	620	800
Effort required to lift max. load N		134	196	324	343	357
No. of falls of load chain		1	1	1	2	3
Load chain MM		6×18	8×24	10×30	10×30	10×30
Length of lever handle MM		288	418	418	418	418
Dimensions(mm)	A	147	178	203	203	203
	B	87	105	110	110	110
	C	126	146	193	235	337
	E	26	31	40	45	57
Net weight KG		7	11	20	30	54

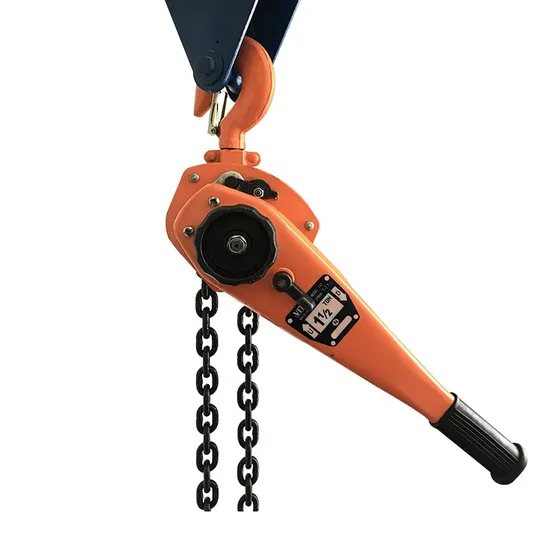

Vt lever block pics:
For newest price feel free to contact us!

---
