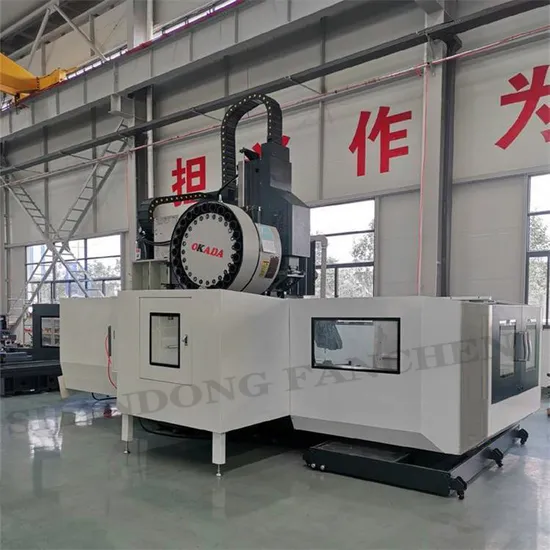

Machining Center Milling Machine Cutting Gmb5018 5025 5030 Numerical Control Machine Tool

US$149,000.00-899,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

GMB5018

Application

Metal

Process Usage

Metal-Cutting CNC Machine Tools

Movement Method

Linear Control

Control Method

Closed-Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.04~0.05(mm)

Performance Classification

Gantry Machining Center

Certification

GS, CE, ISO 9001

Condition

New

Table Size

5000/1800mm

Table T-Slot Dimensions

9/22mm

X-Axis Itinerary

5000mm

Ythe Y-Axis Itinerary

1800mm

Z-Axis Itinerary mm 1000 Principal Axis

1000mm

Speed of Mainshaft

6000rpm

Power of Main Motor

30kw

Taper Hole of Spindle

Bt50

Cut Into

10000m/Min

Three-Axis Servo-Motor Torque

40/30/30n.M

Ponderance

48000kg

Outline Dimension

13000/3800/4800mm

Transport Package

Xyloid

Specification

5000/4000/3000

Trademark

Shandong Fanchen

Origin

China

Production Capacity

100

Packaging & Delivery

Package Size

1300.00cm * 380.00cm * 480.00cm

Package Gross Weight

48000.000kg

Product Description

modelGMB5018	unit	specifications
staging
tablesize	mm	5000/1800
Workbench bearing	kg	3500
TWorkbench T-type groove	mm	9×22
Work table height from the ground	mm	550
Spindle end face to the workbench	mm	250-1250
Spindle center to the front of the column	mm	450
Distance between two columns	mm	2200
Distance from work bench to cross beam	mm	1500
route or distance of travel
x-axis itinerary	mm	5000
yThe y-axis itinerary	mm	1800
z-axis itinerary mm 1000 principal axis	mm	1000
main axle

speed of mainshaft	rpm	6000
Power of main motor	kw	30
taper hole of spindle		BT50
attended mode
rapid traverse
xThe x-axis moves quickly	m/min	12
yThe y-axis moves fast	m/min	12
zThe z-axis moves quickly	m/min	12
Cut into	m/min	1-10000
Three-axis servo-motor torque	N.m	40/30/30
tool magazine
Knife library capacity	T	40(60)
Knife diameter	mm	127/240
Tool length	mm	500
Knife weight	kg	25
precision accuracy
positioning accuracy	mm	0.008
Repeat positioning accuracy	mm	0.005
ponderance	kg	48000
outline dimension	mm	13000×3800×4800

FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
