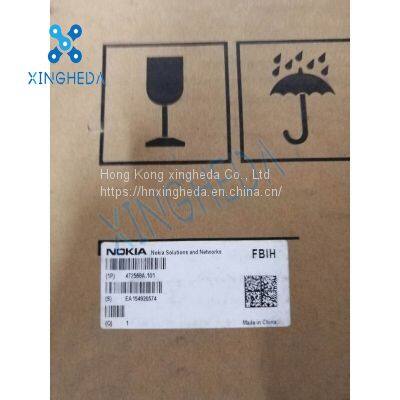

Nokia 472568A.101 FBIH Modules； capacity extension sub-module (FBIH)；Nokia Flexi Multiradio 10 Base Station
Brand: Nokia
Model:Flexi Multiradio 10 Base Station
Part Number: 472568A
Connector
| Type
| Description
|
SRIO1
SRIO2
| SFP | Interface for an external baseband extension,for example additional System Module.
|
RFEXT2
RFEXT4
RFEXT6
| SFP
| Optical interfaces provide RP3-01/CPRI 6.144Ginterfacing towards RF units.
|
RFEXT1/10G
RFEXT3/10G
RFEXT5/10G
| QSFP
| Optical interfaces provide RP3-01/CPRI 6.144Gand CPRI 9.8G interfacing towards RF units.
|
LEDs of the capacity extension sub-module (FBIH)
LED
| Color
|
Operational status
| • Red:Module self-test or reset (LED red for <5 seconds) or major alarm or criticalalarm
• Red, blinking: Minor alarm
• Yellow:Stand-by or blocked
• Yellow, blinking: SW download or configuration ongoing, module non-operational
• Green: Module operational
• Green, blinking: Module is loading softwareor parameters or local maintenance accesswhen modules are operational
|
RF/EXT1
RF/EXT2
RF/EXT3RF/EXT4
RF/EXT5
RF/EXT6
RF1-6 link status
| • Red: no connection
• Green: connection OK
• Yellow: not in use
|
SRIO1
SRIO2
SRIO1-2 connection status
| • Red: no connection
• Green: connection OK
• Yellow: not in use
|
We have Nokia FBIH 472568A for sale, both refurbished and new, at prices typically up to 90% less than the original vendor price. Our super fast turnaround times and high quality stock located all around the world, mean we can ship same-day replacements exactly to where they are needed, minimising network downtime as much as possible.
The Nokia FBIH 472568A like all of our hardware, is fully inspected and repackaged in our ESD and OEM compliant facility by our expert team and comes backed by a comprehensive warranty as standard.Whether you require a brand new product or one that has been refurbished, we source only the highest quality and environmentally-green market equipment. This is all available at the best possible prices, passing the substantial cost benefits directly back to you.
The Nokia FBIH 472568A represents only one item available from our world class portfolio of hardware. This portfolio includes very well known industry names like Nokia, Huawei,ZTE,Siemens, Nortel, Ericsson, Alcatel, Lucent and many more. With almost one million parts in stock, we are grateful to be able to share it with our clients
