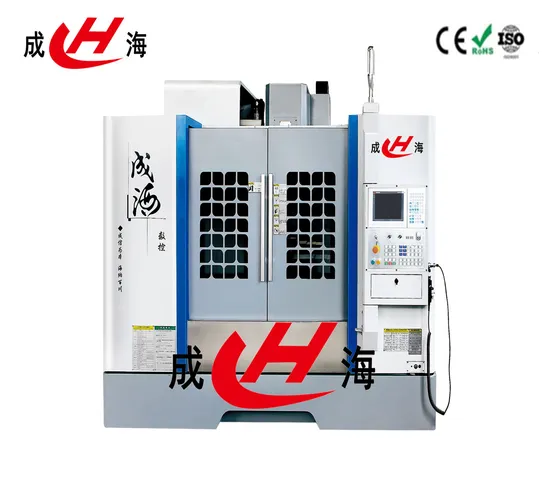

Factory Price High CNC Machine Center Efficiency Automatic 5 Axis CNC Machine Tools for Hmc100 Low Price Milling

Product Description

Product Description

General horizontal machining center, intergrated with the international advanced design concept, the use of ball guide structure T bed, forward hanging box layout, three axis high rigidity roller guide to achieve the perfect integration of high precision and high efficiency processing for various box parts rough finishing.
Product Specifications

Machine Type	Unit	HMC-100
Table Size	mm	1000*1000
Table No.	pcs.	1
Table division	°	1° *360
Table Transmission ratio		240
Maximun table loading capacity	kg	1500
Table surface type	mm	T-slot
Maximun workpiece turning diameter	mm	1830
Table left &right travel(X axis)	mm	1600
Spindle box up &down travel(Y axis)	mm	1000
Table front &back travel(Z axis)	mm	1000
Distance from spindle center to table surface	mm	120-1120
Distance from spindle nose to table center	mm	200-1200
Spindle bore taper		BT50-Φ190
Spindle speed	r/min	20-6000
Tool type		MAS 403 BT50
Rivet type		MAS 403 P50T-1

Products Standard Configuration

KND controller system	Water Tank cooling device	Automatic lubricating device	Outer protective cover
Spindle taper hole air blowing device	Handheld air gun	Control electric cabinet	Transformer
Electric cabinet heat exchanger	Hand pulse generator working lamp	Working light	Three color warning light
RS-232 Standard output interface	LCD	Tools&Tool box	Spindle
Screw	Heat exchanger	Linear guide rail	Pneumatic part
Lubrication system	Operation Manual

Opitional Configuration

Automatic tool changer (Armless type or Arm type)	Spindle oil cooling device	High speed spindle(10000-15000rpm)
Spindle center water outlet unit	Chain chip conveyor/Spiral chip conveyor	Disc type oil water separator
The 4th axis	Electric cabinet air conditioning

We also have many high quality parts and different optional accessories for you to choose according to your requirement. If you want to know more details, please contact us !
CNC Controller System
Sample Display
Certificate
Company Profile
About us
Jiangsu Chenghai Machine Tool Co.,Ltd. is a machine tool manufacturing company integrating design, manufacturing,s ales and service.
The company has 25,000 square meters of standardized factory buildings, the company has passed the ISO9001 quality management system certification and CE"certification, and is recognized as a national high-tech enterprise, specialized new small and medi- um-sized enterprises.
The main production are vertical, horizontal, gantry maching center, CNC lathe, radial driling machine, vertical drilling machine, knee type milling machine, turret milling machine, drilling milling machine, and other products. And obtained a number of invention patents and utility model patents. The company's main products have entered the core manufacturing fields of automobile manufacturing, national defense, aerospace, rail transit, hardware mold and other key industries.
The company constantly innovates the research and development and manu- facturing of intelligent equipment, with strong technical force and perfect supporting facilities. Product performance is stable, well recognized by customers, products are sold to many provinces and cities in the country and Europe, the United States, Asia and other countries and regions.
The company has more than 300 employees, more than 80 high-tech management personnel, all with many years of CNC machine tool manufacturing and sales experience. The company has established long-term strategic cooperative relations with domestic and foreign well-known enterprises,constantly introducing and training professional and technical personnel, improving the management system, and wholeheartedly providing high-quality products to domestic and foreign customers. Make your own contribution to the development of intelligent equipment industry!
Jiangsu Chenghai Machine Tool Co.,Ltd. is wiling to sincerely cooperate with friends from all walks of life and develop together.
Workpiece display
The VMC machine can complete miling,boring, drilling,tapping and cutting threads and other processes.
Ball bar roundness accuracy testing Machine cutting testing Spindle dynamic balance detection
Testing process/Multi-layer testing before delivery
The importance of testing includes not only the machine performance but also the strength of the manufacturer and the responsibility to the customer. Laser interferometer detection

Finished workshop
Chenghai Machine adhere to the quality as the center,attach importance to product development and technological innovation.
Cooperation Partner
Exhibition Show

---
