CNC Chair Leg Machine Wood Furniture Making

US$22,000.00-75,750.00 1 Set (MOQ)

Basic Info.

Model NO.

JCW1325R-4H 5AXIS

Spindle Number

8/10 Spindles

Feed Mode

Mechanical

Controlling Mode

CNC

Certification

CE, BV,TUV

Customized

Condition

New

Color

Customized

Working Size

300mm Diameter,1200mm Length for Each Rotary

Spindle Power

3.5kw Air Cooling * 8

Working Mode

Japan Yaskawa Servo Motor and Driver

Control System

5 Axis Syntec

Software

Powermill

Command

G Code

Option 1

Flat Table

Option 2

3D Scanner

Application

Wooden Furniture Legs,Table Leg,Sofa Leg,Sculpture

Name

5 Axis CNC Wood Carving Machine

Transport Package

Iron Wires, Film.

Specification

300mm diameter, 1200mm length

Trademark

CHAODA

Origin

Linyi, Shandong, China

HS Code

8465990000

Production Capacity

300sets/Month

Product Description

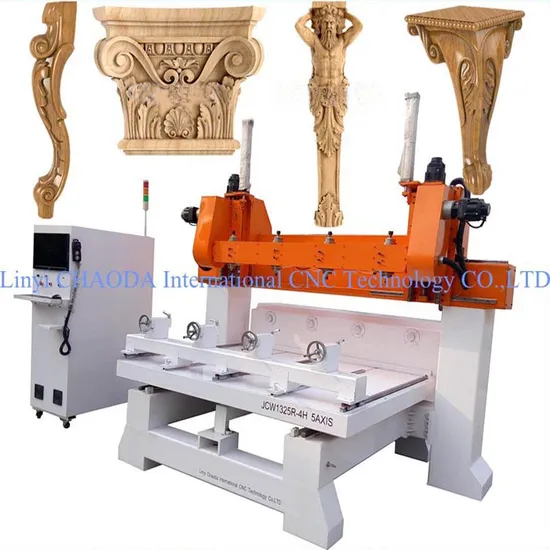

cnc chair leg machine wood furniture making
Model: JCW1325R-8H 5AXIS
>> Application
1. furniture legs,like desk legs,sofa legs,bed legs,stair handrails and so on.
2. 3D sculptures and complex artworks,easily engrave 360 degree Human body,Buddhist statue,sculptures.

>> Feature

1. Lathe bed adopts strong welded steel tube to avoid distortion
2. multi spindles can work at the same time,also can work alone,can control the machine heads independently,
3. TABLE movement, long time use no distortion,more precise positioning accuracy.
4. well compatibility in software: all kind of 3D carving.
5. we can make Multi spindle heads machine and any working size according to customers' requirements.
>> Parameter

1	Model	JCW1325R-8H 5AXIS
2	Working size	300mm diameter,1200mm length * 8
3	Spindle power	3.5kw air-cooling * 8
4	Spindle rotating	18000rpm
5	Max Moving speed	20m/min
6	Reposition precision	0.05mm
7	Control system	5 axis Syntec
8	Working model	Japan servo
9	Max Burden weight	1500kg
10	Voltage	AC380v,50Hz

>>More Details
>>Sample Photos
contact us as below guide,we will offer you our best price !!
