Small Desktop Micro Fully Automatic Mini DIY Electricity Plastic Injection Molding Machine

Product Description

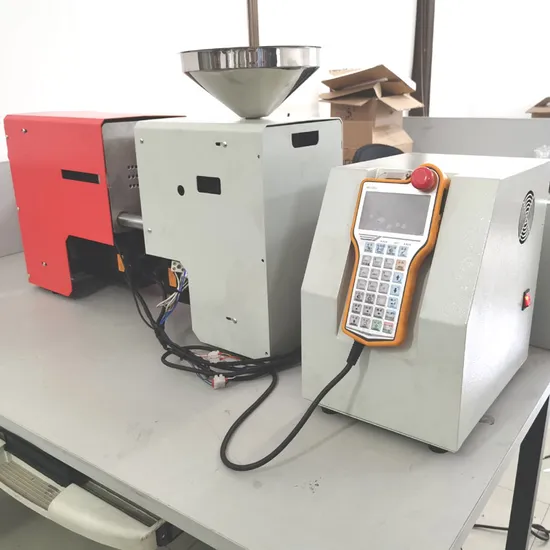

HAIJIANG desktop injection molding machine 1.Intelligent
Few people at site or realize unmanned.
Computer/cellphone: business trip for you to connect internet to know the situation of the machine.
You can operate and monitor the machine on your office.
2.Mini
It covers an area of about 1 square meters,and can build mini injection workshop, saving investment of workshop and mold.
Machine dimension:700mm*340mm*180mm;
Net weight:70kg.
3.Energy saving(0.67KW/h)
Traditional hydraulic press 15KW/H
HaijiangMini automatic press 0.75KW/H
Servo energy saving injection press is equipped with high performance servo electric motor driving control system. Output power of servo motor varies as loading changes so more energy consuming is not existing. During keeping pressure state, motor rotating decrease with low energy consuming. During cooling state, motor is ne
Injection Unit:
1. High Quality Linear Motion Guide ensure the smooth & accuracy of injection process
2. High Speed & Pressure injection structure can improve the injection speed
3. Twin nozzle cylinder ensures more even & stable structure
4. Specilized screw barrel design for various appliance

Electrical System:
1. Control by double CPU, the system HMI use X86 300MHz technical grade display. The system employees a RISC 140MHz microprofessor, with high speed, noise-immunity, fan-less and lower power consumption, independent control structure improve the stablity of control
2. 8.4" display screen with resolution 800*600, user friendly screen & optional choose of language
3. Equiped with USB(2.0) port & ethernet(100-base T) ports
4. 32 Points input & output, entendable and trouble spot can be replaced easily
5. Linder transducer's resolution is 1/65535, more precise in control
6. 120 technological parameters access can be stored & uploaded with an ordinary USB drives
7. Injection End and temperature tracking is curve display, dynamic recorder parameter is modified, dynamic warningis exhibited, all these make the operation more convenient.

Servo Controller Part:
1. High Precise Control The servo system can control the machine's pressure, speed & location precisely, make sure that the error of accurate repeatability precision for the shot measurement is <0.3%
2. High sensitive response Because the motor vector is matched with the controller accurately, it only takes 0.5sec. inputing the number from 0 to max. Compared with other traditional hydraulic injection molding machine, HJ series is more faster in speed with shorter cycle time and high efficient in production
3. Low noise Compared with traditional fixed pump & variable pump system, the noise is 1/10 lower under normal circumstance, more suitable for sealed dustless workshop
4. Energy Saving Overall efficiency is 10% more & driving capacity is 18% more than common machine. This series can save 40-80% energy, and achieve first-class energy efficency
5. Water cooling saving The system condition prevent high pressure uploading without any power output, leads to the water cooling saving

Model Number	HJKMINI-5T
Power	0.5kw
Shot weight	20 grams
Nozzle hole Diameter	2mm
Motor Accuracy	0.02mm
Cooling Type	Water
Power source	AC220V
Max Mold size	180*110mm*110mm
Heating Band Power	DC36V
Material	PC,PS,PP,ABS,TPU
Machine Size	650mm*340mm*180mm
Machine weight	105kgs

FAQ
Q1. What is the warranty for the injection molding machine
A1:Total 18 month,Included machine platen,base,injection unit,clamping unit.
Q2:Can you sending engineer to oversea install machine and trainning customer's workers.
A1: Yes,We will send engineer to customer factory install the machine or trainning customer's workers. in one week,total free.
After one week, 50$ per day
Q3:How Many spare parts you will prepare for customer?
A3: Spare parts included: mould clamp, long and short nozzle,heating band,Wrench,Switch,Thermocouple,Operation manual
Tool box,Lubricate Oil,Sealing,Filter etc.
Q4:Computer sytem,Except English, can you change other language,say: French,Spanish,Arabic,Russian.
A1:Yes,when you place order,please tell us the language which you required. Standard one with English,Japanese,Chinese,Korea.
Q5:Can you change the power source for us? Say:we need 3 Phase 220V 60HZ
A5: When you place order,please write clearly.Then we will change the electric system for you.
Q6:If i Need Green Color machine,can you do it for us?
Q7: Yes,please give us the color sample.So we can do it for you.
