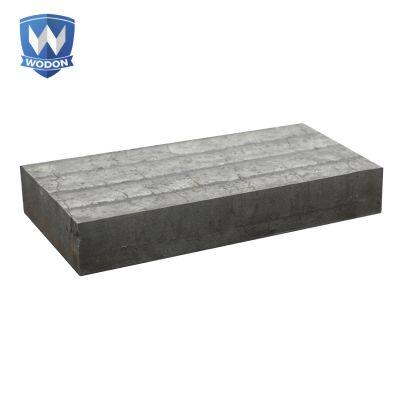

Port Grab Bucket Wear Liner1, General Description
Chromium carbide composite cladding fusion bonded to a mild steel backing material.
The deposit has been realized by means of oscillated welding and a wear resistant coating applied by submerged arc welding.
Fine cracks perpendicular to the welding bead is normal due to natural stress relieving in a very hard matrix.
Very high volume of chromium carbides evenly distributed throughout the uniform thickness of the deposit.
Plate hardness ranges from HRC58-65.
2, Application
Wodonplate Suitable for applications involving high abrasion and low to medium impact.
Typical applications are as follows:
Bin and hopper liners
Slurry pipes and bends
Chute and feeders liners
Belt conveyors
Dump truck bodies liner
Mining and earth moving equipment
Mill shell liners
etc...
3, Specification
| Thickness(backing plate + weld overlay) | L x W (mm) |
| 4+4, 5+5 | 1,400 x 3,000 |
| 6+6, 8+5, 8+6, 8+8 | 1,400 x 3,500 |
| 10+8, 10+10, 10+20, 12+12, 12+20, 14+26, 12+32, 20+30.. | 1,400 x 3,500 2,100 x 3,500 |
| Carbon | Silicon | Manganese | Chromium | Iron |
| 3.5-6.0% | 1.0-3.0% | 1.0-3.0% | 27-40% | Balance |
Note: Carbon and Chromium content varies in different plate thickness.
4, Fabrication
The backing mild steel plate provides Wodon brand overlay plates with structural integrity, which makes our overlay plates fabricated with zero damage to welding overlay, regardless of the shape and complexity of the structure. Wodon has the capabilities to manufacture and further process such fabrications or to supply formed, read-to-go wear liners.
Cutting: Wodon overlay plates could be cut by plasma, waterjet, laser. Plasma cutting is the recommended method for cutting our plate
Drilling: Straight holes and countersunk holes
Studs Welding: Wodon plate can be fabricated with studs welded to backing of wear plate (M12, M16, M20 and M24)
Joint Welding: Wodon wear plate can be welded and assembled into kinds of wear parts
>>
