Mss 7X-45X Binocular Stereo Microscope for Craftsmanship

Product Description

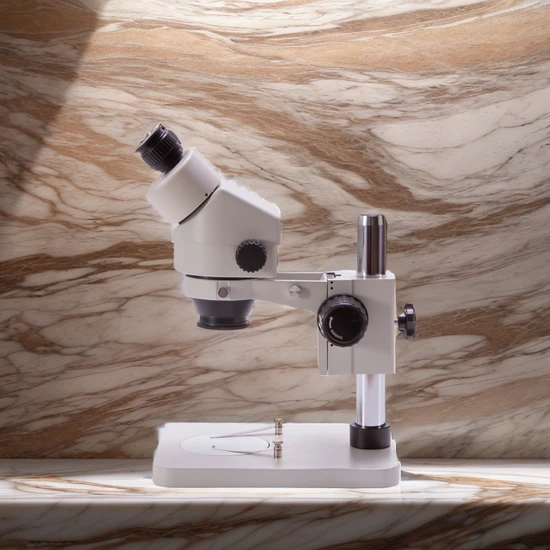

MSS 7X-45X Binocular Stereo Microscope
Experience high-quality craftsmanship with the MSS 7X-45X Binocular Stereo Microscope. This versatile and durable microscope features a large working distance, allowing for improved depth perception. Perfect for industrial use or student projects, this cutting-edge microscope offers advanced technology at an affordable price.
Parameters MSS-0745

Head angle view	45º
Ratio	1:6.4
Eyepiece	WF10X/20mm
Obj.	0.7x-4.5x
Mahnification	7x-45x
Interpupillary distance	55-75mm
Working distance	100mm
Base	With clipsandφ95mmglass working board
Pillar high	240mm
Diameter	φ32mm
Base size	200mmx255mmx22mm

objective	Standard configuration		Auxiliary objective lens0.5x		Auxiliary objective lens1.5x
	W.D.100mm		W.D.165mm		W.D.45mm
	Magnification	Field of view range	Magnification	Field of view range	Magnification	Field of view range
WF10X/20mm	7.0x	28.6mm	3.5x	57.1mm	10.5x	19mm
	45x	4.4mm	22.5x	8.9mm	67.5x	3mm
WF15X/15mm	10.5x	21.1mm	5.25x	42.8mm	15.75x	14.3mm
	67.5x	3.3mm	33.75x	6.7mm	101.25x	2.2mm
WF20X/10mm	14.0x	14.3mm	7.0x	28.6mm	21.0x	9.5mm
	90.0x	2.2mm	45.0x	4.4mm	135.0x	1.5mm
