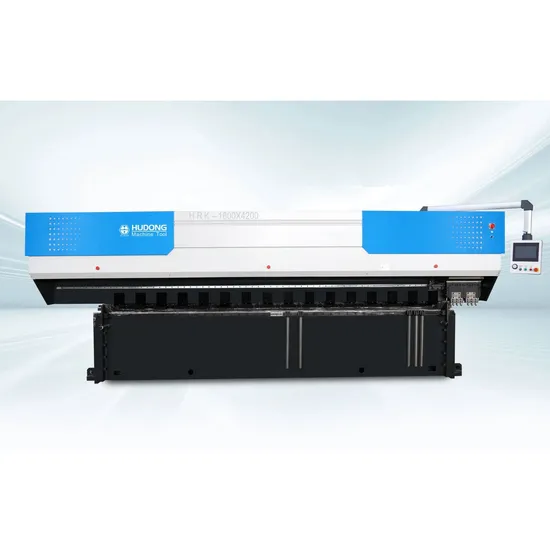

High Speed New Condition Aluminum Sheet Metal Automatic CNC Slotting Machine Stainless Steel Plate Grooving Machine

Product Description

High Speed New Condition Aluminum Sheet Metal Automatic CNC Slotting Machine Stainless Steel Plate Grooving Machine
Product Description:
The equipment which is with an advanced CNC system and a novel design. It has the characteristics of high processing accuracy, simple operation, no noise and no vibration. This equipment could machine V-groove, U-groove and other irregular groove in sheet metal parts, including stainless steel plate, aluminum plate, aluminum plastic plate, copper plate, iron plate, plywood, acrylic plate, and some other special plates. It is especially suitable for V-groove processing before bending of sheet metal parts.
Product Parameters
Main Technical Parameters of Equipment:

Model	product name	specifications and models		unit
		1250/3200	1600/3200
1	Grinding length	3200	3200	mm
2	Grinding width	9-1250	9-1600	mm
3	Grinding thickness	0.3-6	0.3-6	mm
4	Fixed pressing plate	12	12	pic
5	adjustable cramp	11	11	pic
6	Maximum X-axis itinerary	3200	3200	mm
7	The X-axis servo-motor power	4.5	4.5	KW
8	X-axis maximum movement speed	100	100	m/min
9	Z-axis maximum stroke	10	10	mm
10	Z-axis servo-motor power	0.4/0.4	0.4/0.4	KW
11	axis maximum movement speed	0.5	0.5	m/min
12	he Y-axis servo-motor power	2	2	KW
13	Maximum movement speed of the Y-axis	20	20	m/min
14	380V-50Hz)Oil pump motor power (380 V-50Hz)	2.2	2.2	KW
15	fuel tankage	35	35	L
16	Overall dimension of the machine tool	4800×2500×2150	4800×2800×2150	mm
17	bench height	750	750	mm
18	machine weight	8 About 8	8 About 8	ton

Main Configuration of Equipment:

serial	model name	Brand	serial	model name	serial
1	numerical control system	Mitsubishi	14	Alloy knife	Dasan
2	Pneumatic electromagnetic valve	STNC	15	linear guide rail	HIWIN
4	servo drive	Easycat	16	High precision ball rod	HIWIN
5	servo motor	Easycat	17	Precision gear teeth	AMD
6	Planet reducer	AMD	18	angular contact ball bearing	NSK
7	PLC	Easycat	19	Double film coupling	GND
8	Single / bipolar air switch	Schneider
9	AC contactor, thermal relay	Schneider
10	Circuit breaker, button	Schneider
11	midget relay	Schneider
12	Machine tool flexible power cable	igus
13	proximity switch	Easycat

Detailed Photos
Main Parts:


Company Profile
HUDONG HEAVY INDUSTRY MACHINERY MANUFACTURING CO.,LTD. is a specialized company, designated by the nation to produce forging equipments, press brake, shearing machine, press machine and rolling machine etc., with a producing histroy of more than30 years.The company has developed rapidly on design development and manufacture capability of products. We adopt advanced processing equipments, perfect designs, masterly craftwork and beautiful appearance. Our product has a strong structure, and a safe and reliable performance. Part of products win the title of "Award of high quality". And our company has been rated for consecutive years as "AAA Credit Unit", "Heavy Contract, Keep Promise Unit", "Customer Product Satisfaction Demonstration Unit", etc.Our products have passed certificate of ISO9001:2008 Quality Management System, and all of our products are audited by the European Union CE certification.The production management scale has been extended year after year with advantaged product market and high recognition by the customer. Since the past 30 years, the company has always adhered to the faithful management idea of "Customer First, Quality First", and established reliable market channel as well as mature clienteles. No matter at the present or in the future, our pursued objective for product quality is always: high-grade, high-precision, advanced technology, striving for manufacturing the most perfect machines.
FAQ
Q1. Are you a factory or a trading company?
A: Maanshan Hudong Heavy Industry Machinery Manufacturing Co.Ltd is a professional manufacturer of press brake, shearing machine, fiber laser cutting machine and other sheet metal processing equipment. We have more than 30 years of manufacturing experience, and our products were exported to more than 90 countries and regions.
Q2. This is the first time I use this kind of machine, is it easy to operate?
A: Detailed installation and operation instructions are sent to you free together with the machine. Free training courses are offered in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side. Video technical support and online support are provided, 24 hours technical support by calling, video and email.
Q3. What is your normal lead-time?
A: Lead-time for a routine order would typically be 25-30 days. However, this varies with a number of factors including order size, machine model, workpiece complexity and shop load, to mention a few. Lead times are provided with all quotations. Please advise us if a rush order is required and we can usually accommodate.
Q4. Where are you located? How do I get there?
A: Maanshan Hudong Heavy Industry Machinery Manufacturing Co.Ltd is located in Maanshan city, Anhui Province, China; near Nanjing and Shanghai.
You can fly to Nanjing airport or Shanghai Hongqiao airport, or take high-speed rail to Nanjing South Railway Station, then we will pick you up. You May Like
