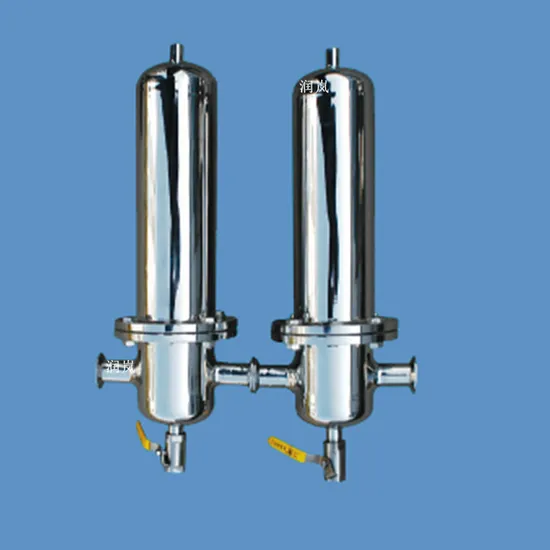

Sanitary Stainless Steel Air Cartridge Filter Housing

Product Description

Product Description
Material: SUS304/316L
Connection Type: Quick Connect Or Flange
Seal Material: EPDM/Silicone/Viton
Seal Type: Square Gasket
Apply To Strainer: 10"/20"/30"/40"/226 Plug-in
Design Pressure: 1.0Mpa
Design Flow: 1.5-9.5m3/H
Surface Disposal: Mirror Polishing Or Electrolytic Polishing
Product Features
- The inner and outer walls are hygienically polished, and electrolytic polishing is optional for higher requirements
- Optional high-pressure clamps are available to meet ultra-high pressure requirements, and the maximum pressure can
exceed 1.0Mpa
- The filter is equipped with a detachable bracket as standard to meet different installation needs
- The filter foot adopts reinforced thread, which is not easy to slip
Corresponding specifications can be customized according to customer flow requirements and other working conditions
Product Parameters

Model/Dimension	Amm	Bmm	Cmm	Dmm	N1	N2	N3 Inner thread	N4 Inner thread
RHLX-1-10	Φ102	230	530	/	IDF1"θ25.4*1.5 Quick connect	IDF1"θ25.4*1.5 Quick connect	RC1/4"	M20*1.5"
RHLX-1-20	Φ102	230	780	/	IDF1"θ25.4*1.5 Quick connect	IDF1"θ25.4*1.5 Quick connect	RC1/4"	M20*1.5"
RHLX-3-10	Φ180	300	780	324	DN32	DN32	RC1/2"	M20*1.5"
RHLX-3-20	Φ180	300	1030	324	DN32	DN32	RC1/2"	M20*1.5"
RHLX-5-10	Φ230	320	780	374	DN50	DN50	RC1/2"	M20*1.5"
RHLX-5-20	Φ230	320	1030	374	DN50	DN50	RC1/2"	M20*1.5"

Product Application
Food and beverage industry: beer, wine, wine, sake, liquor, wine, fruit juice, bottled water, tea drinks, soy milk, syrup, dairy products, food additives, water filtration to clarify the process and CIP. Petrochemical industry: all kinds of lubricants and oil, glue, chemical fiber manufacturing process of various solution was filtered. Oil and gas industry: amine desulfurization, dehydration flux filter, oil field water, completion fluid filtration. Car paint, painting industry: paint, electrophoretic paint, pre-treatment fluid, paint and paint raw materials and solvent filtration Textile/printing and dyeing/paper making industry: spinning liquid, dyes, flux, water, additives, adhesives filter. Edible oils and soap industry: polishing purification of edible oil, soap raw materials and water filtration. Pharmaceutical industry: a variety of pharmaceutical intermediates, pharmaceutical raw materials, solvent filtration. The electronic and electroplating industry: a variety of plating solution and water filtration. Machining industry: a variety of cutting fluid, coolant and cleaning liquid filtration.
Etc...
Certifications
Packaging & Shipping
Company Profile
FAQ

Q: Are you manufacturer?

A: Yes, we are a manufacturer with over 15 years of history, address is located in Fengxian District, Shanghai.

Q: Can you provide sample? Free or chargeable?

A: Yes, we can provide free sample for filter elements, for filter housing need chargeable.

Q: Dose the product support customization?

A: We have a professional team of engineers, can provide customized solution plan according to customers need.

Q: What is the payment terms?

A: Usually we support the T/T.

Q: How to choose the shipping way?

A: We cooperate with professional logistics companies, and customer also can choose own freight forwarder.

---
