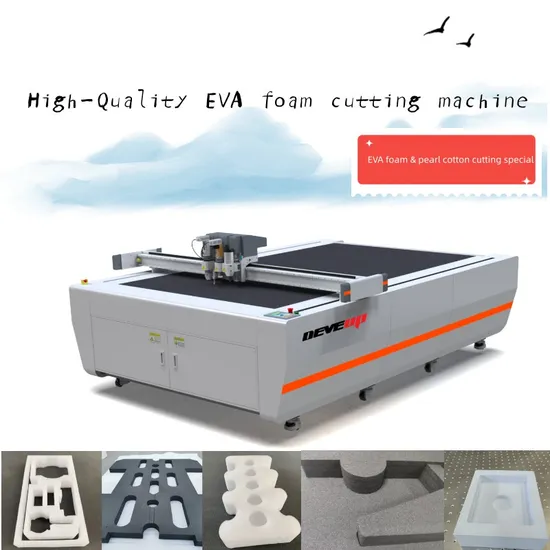

Automatic CNC Knife Cutter Table Digital Cutting Engraving Router Machine for Polyethylene Foams EVA EPE PE XPE PU Foam Silicone Sponge Cotton

Product Description

CNC Oscillating Knife Cutter Machine for Cutting EVA EPE PE PET XPE IXPE Silicone Foam Sponge Cotton PVC Honeycomb Corrugated Paper Packaging Cardboard
Features:
Deveup(Rubycnc) EVA foam cutter features advanced oscillating knife cutting technology. It is widely used in packaging, crafts, toy manufacturing, advertising, and other industries. Only need to transfer the designed graphics to the computer, CNC oscillating knife cutting machine can automatically and accurately cut a variety of foam materials, such as EPE, EPE , PE, EVA, XPE, silicone and other foam materials. No need for molds, high processing accuracy, high efficiency, neat and smooth cutting edges, to meet the cutting requirements of complex graphics.
Specifications:

Model	DO1625S /DO1330S /DO1830S
Working area	1600x2500mm /1300x3000mm /1800x3000mm (Support customization)
Operation properties	Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime
Safety device	Physical anti-collision mechanism + infrared induction anti-collision to ensure production safety
Multi-function tool	Oscillating knife full cut, drawing marker, cursor positioning, V-groove various angle cutting
Applicable materials	EVA, EPE, PE, XPE, PE , EPP, EPS, XPE, IXPE , XPS, PET, PU foams, Cardboard, gray cardboard, KT board, Chevron board, honeycomb board, car sticker, PP adhesive, inkjet cloth, flag cloth, various corrugated cardboard, PVC board, and etc.
Transmission system	Japanese Panasonic servo motors + precision reducer + Taiwan PMI guide rail + grinding rack
Fixed mode	Vacuum adsorption
Precision	±0.01mm
Cutting speed	0-1500mm/s(Set according to material)
Cutting thickness	Standard cutting height: ≤45mm, customizable maximum cutting height 110mm
Support file format	AI,PLT,DXF,DWG
Rated power	9KW/11KW
Rated voltage	380V±10%/220V±10% Optional
Control System	Multilingual languages LCD touch panel

Advantages:
Deveup CNC oscillating digital knife cutter is widely used in the cutting and milling of EVA EPE PE and other foam boards. It adopts advanced oscillating knife cutting technology with various cutting tools to meet different materails cutting. It can meet a variety of foam material cutting, such as EVA, EPE, PE , PET ,sponge, EPS styrofoam and so on.
Advantages to using the CNC Oscillator Knife Cutter to cut foam:
1. More smart; EVA foam automatic cutting machine does not need a mold, just process the processing data (PLT, DXF, AI format) into the system to cut, and can modify the size and shape of the processing graphics arbitrarily;
2. Save materials; automatic nesting software can complete typesetting quickly and accurately without manual nesting. After actual testing, using an automatic cutting machine can save more than 10% of material compared to manual cutting;
3. Meet different foam cutting; can cut foam of different width, thickness, and material. High cutting precision and flat cutting to meet the cutting requirements of complex graphics.
4. The processing site is more humanized; Deveup EVA foam cutting machine adopts high-frequency oscillating knife cutting technology. Compared with laser cutting technology, the processing site has no soot, and the cutting speed is 3-4 times that of the laser. More environmentally friendly processing methods.
5. Different types of tools can be configured; customers can configure different processing tools according to the processing materials - round knife, pneumatic knife, punching knife, vibrating knife, and other cutter heads to configure freely to cut other materials except for foam;
6. Achieve higher cutting efficiency; Deveup EVA foam cutting machine adopts Japanese Panasonic servo motors with cutting speed of up to max 1500mm/s. Customers can also choose dual-oscillating tools to cut at the same time, which doubles the processing efficiency.
Machine Details:Colorful LCD touch operation panel supports world multilingual kinds of languages, with more intuitive operation interface, which can directly input processing data, set processing speed and knife depth, support screen automatic protection, and protect processing data,feature-rich and user-friendly operation. A variety of tool combinations, equipped with intelligent tools interchange system, can cut different materials to achieve different tasks, and multiple tool heads can work individually or in concert. Powerful function, fast running speed, high processing accuracy, truly multi-purpose machine.Foam CNC cutting machine uses vibration cutting technology, the cutting tool is a tungsten steel blade. Up to 100mm foam can be cut.The worktable is a high precision and strength aluminum honeycomb vacuum absorption worktable. Cooperate with high power vacuum pump to fix the material. High power vacuum pump to fix material. The vacuum pump runs automatically when the machine is working. Use top quality Japan Panasonic or Taiwan Delta servo motors and drivers. Strong power, long life, and high precision.Machine operation software is feature-rich, supports multi-language, friendly operation, and has automatic optimization nesting function, which can help customers save raw materials to the greatest extent.
More Applications:
More Cutting Samples:
Our digital cutting machine is widely used in the advertising printing and packaging industry. It is equipped with a replaceable tool head to meet the different cutting needs of customers cutting different materials. The cutting materials include various corrugated paper, Chevron board, car stickers, adhesive, Photo frame paper, KT board, gray board paper, honeycomb board, acrylic board, PVC board, foam, etc.
Multi-function cutting head design, highly integrated multi-group machining tools, interactive cutting, punching, and scribing in one working unit for one-stop operation. Oscillating knife cutting head, crimping reel, V-cutting head, and high-speed milling head. Can cut 30 or 60mm honeycomb paperboard, acrylic sheet, corrugated paper, plastic corrugated board, gray board paper, white cardboard, film, composite material, leather, cloth, rubber sheet, pearl cotton, aluminum composite board, and foam KT board A variety of materials. The V-cut system can cut V-shaped grooves of 5 different angles such as 45°, 30°, 22.5°, 15°, 0°, etc. Customers can choose the appropriate configuration according to their own needs.
Package and Delivery:
FAQ:
1. Q: Are you a factory or Trading company?
A: We are a professional oscillating knife cutting machine production factory, we produce high-end quality CNC cutting machines.
2. Q: Can you customize the machine according to my needs?
A: Yes, we accept the customized machine, our company has an experienced professional design team, we can give you our professional suggestions according to your requirements and design a cost-effective machine for your needs.
3. Q: What is the difference between this knife cutting product and your laser cutting machine?
A: a. This knife cutting machine cut with vibrating blades, no laser, no pollution, and create a good working environment for workers.
b. Blade cutting can ensure the edge of material cutting smooth without burning.
4. Q: What's the warranty policy?
A:Standard warranty is 36 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period.
Problems caused by wrong operate will also well-solved.
5. Q: Can I still get support after warranty?
A: Of course, We offers life-time technology support, you can always counting on our service.
6. Q: This is the first time I buy machine from China, what can you do for me?
A: We supply DDU service for the new buyers. This service means we will deliver machine directly to your factory.
Welcome to inquire, we will provide professional solutions!

---
