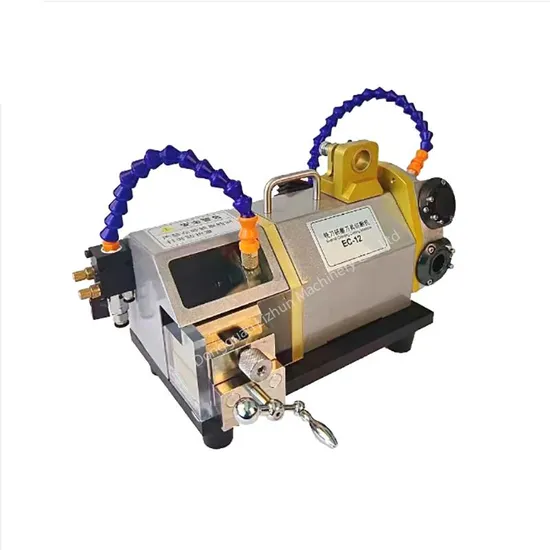

3-12mm Drill Bit Grinder Tool Sharpening Machine

Product Description

Product Description
Functions and Features
1.One machine dual use, grind the end End mill, cutting tools high-speed.
2.Applicable for 2/3/4 flutes tungsten carbide and high speed steel end milling.
3.Grinding End mill parts are blade Angle, front bevel Angle and back bevel Angle.
4.The width of the first back Angle of the End mill can be adjusted to apply to different hardness materials cutting.
5.Easy to operate, anyone watching the video can achieve a minute to grind a End mill.
6.Liquid cooling grinding, grinding precision and finish is high, the tool material is not hurt, End mill durability greatly improved than "dry grinding" .
7.Adopts vice clamping, stable and reliable, easy to cut off all kinds of tools (not limited to round rod type). 8.Liquid cooling cutting, cutting instant temperature greatly reduced, cutting efficiency and grinding wheel life greatly improved.
Detailed Photos
Product Parameters

Model	EG-12 ordinary EG-12S Environmental protection	EG-16 ordinary EG-16S Environmental protection	EG-25 ordinary EG-25S Environmental protection
Applicable diameter	Φ3~12mm	Φ3~16mm	Φ4~25mm
End mill grinding Angle	inclination angle 3°,rake angle 20°,back slop angle30°	inclination angle 3°,rake angle 20°,back slop angle30°	inclination angle 3°,rake angle 20°,back slop angle30°
Power	220V/400w	220V/400w	220V/400w
Speed	5000 RPM/Min	5000 RPM/Min	4500 RPM/Min
Grinding wheel	One SDC wheel (CBN optional )	CBN SDC wheel (CBN optional )	SDC wheel (CBN optional )
Packing size	42*36*38cm	42*36*38cm	42*36*38cm
Weight	10.5KG	11KG	13.5KG

Company Profile

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.

---
