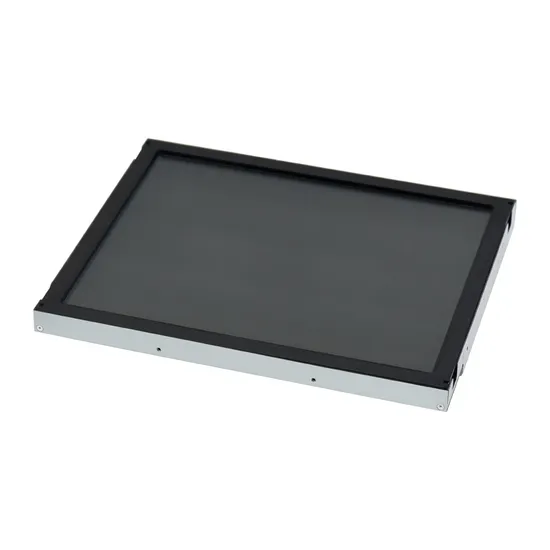

Metal Case 15" Open Frame Touch Screen LCD Screen Monitor Capacitive Touch Screen LCD Display

Product Description

15" IR Customized Open Frame Touchscreen TFT LCD Monitors
Product Description
CJTOUCH IRW Series Infrared(IR) touchscreen monitor have size from10.4" to 65",with 3mm/4mm tempered glass Support vandal-proof ,with energy-savingLED backlight, the open-frametouchscreen instantly grabs andholds the users' attentionfor kiosks , casino and amusement, retail self-service,advertising machine, education AIO touch machine.CJTOUCH IRW Series Infrared(IR) touchscreen monitor surface waterproofcan meet IP65 standard, with 3mm tempered glass with vandal-proof ,with energy-saving LED backlight, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks,casino and amusement,retail self-service,and industrial automation.
15" to 21.5".-energy-saving LED
-Dust-proof optional
-Custom-made workable
-With new Brand grade A TFT LCD panel
-FCC,CE,RoHS Certification
-4mm tempered glass, Vandal-proof
-Windows/ Android/ Linux Supported
-250cd/m2 to 1500cd/m2 brightness optional
-USB touch interfave, VGA /DVI / HDMI vedio input optionalProduct ParametersGeneral

LCD Type	New Brand grade A TFT-LED panel
Video Input	VGA and DVI
Recommend Resolution	1024×768@75Hz
OSD controls	Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply	Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max
Mount Interface	1)VE-SA 75mm and 100mm 2)Mount bracket, horizontal or vertical
Regular Warranty	1 years for IR touch screen; 1 year for LCD
Agency Approval	FCC,CE
Operating Temp.	0~50°C
Storage Temp.	-20~60°C
Operating RH:	20%~80%
Storage RH:	10%~90%

LCD Specification

Active Area(mm)	306(H)×230(V)
Resolution	1024×768@75Hz
Dot Pitch(mm)	0.264×0.264
Nominal Input Voltage VDD	+5.0V(Typ)
Viewing angle (v/h)	85°/88°
Contrast	1000:1
Luminance(cd/m2)	250
Response Time(Rising/Falling)	5s/5s
Support Color	16.7M colors
Backlight MTBF(hr)	30000

Touchscreen Specification

Type	Cjtouch Infrared(IR) touch screen
Resolution	4096*4096
Light Transmission	92%
Touch Life Cycle	50 millions
Touch Response time	16ms
Touch System Interface	USB interface
Power consumption	+5V@80mA

Technical Drawing:
Components
USB Cable 120cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
OSD Control
Adjusting with OSD control
Five different keys are well-defined for operation . They are labeled on the keypad.
A)[Power] Key is designated for Power On/Off
B)[Menu] Key is designated for Menu/Enter function depending on the selected item. Pressing [Menu] can invoke OSD menu. After that, [Menu] is also an entry key.
C)[+] key is designated for selection function in up direction in OSD menu and also to increase the value on selected function,Directly use + Key is to increase brightness.
D)[-] key is designated for selection function in down direction in OSD menu and also to decrease the value on selected function,Directly use - Key is to decrease brightness.
E)[AUTO] key is designated for invoking AUTO ADJUST function at any time once is pressed for H-position, V-position, Pixel Clock and Phase for an optimal image.
Related Products
Other IR Touch Monitor

USB Touch interface, 1/2/4/6/10 points touch optional, Windows/Linux/Android OS, Plug &play, tempered glass
	COT104-IPF02	COT121-IPF02	COT156-IPK03	COT185-IPK02	COT215-IPK02	COT220-IPK03
Size	10.4"	12.1"	15.6"	18.5"	21.5"	22"
Ratio	4:3	4:3	16:9	16:10	16:9	16:10
Brightness	400	400	300	250	250	250
Contrast	700:1	600:1	400:1	1000:1	3000:1	1000:1
Input	VGA+DVI	VGA+DVI	VGA+DVI+HDMI	VGA+DVI	VGA+DVI	VGA+DVI+HDMI
Resolution	800×600	800×600	1366×768	1366×768	1920×1080	1680×1050
Viewing angle	80°/60°	60°/70°	60°/70°	80°/85°	89°/89°	80°/85°
Touch screen	IR	IR	IR	IR	IR	IR
	COT236-IPK03	COT270-IPK02	COT320-IPK02	COT420-IPK03	COT550-IPK03	COT650-IPK03
Size	23.6"	27"	32"	42"	55"	65"
Ratio	16:9	16:9	16:9	16:10	16:9	16:9
Brightness	250	300	400	450	390	400
Contrast	1000:1	3000:1	3000:1	1300:1	1000:1	1400:1
Input	VGA+DVI+HDMI	VGA+DVI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI
Resolution	1920×1080	1920×1080	1920×1080	1920×1080	1920×1080	1920×1080
Viewing angle	89°/89°	89°/89°	89°/89°	89°/89°	89°/89°	89°/89°
Touch screen	IR	IR	IR	IR	IR	IR

Other SAW Touch Monitor

USB/RS232 Touch interface, 1points touch, Windows/Linux/Android OS, SAW/Resistive optional
	COT080-APF02	COT084-APF02	COT104-APF02	COT121-APF02	COT190-APF02	COT156-APK03
Size	8"	8.4"	10.4"	12.1"	19"	15.6"
Ratio	4:3	4:3	4:3	4:3	5:4	16:9
Brightness	300	300	400	400	250	300
Contrast	500:1	500:1	700:1	600:1	1000:1	400:1
Input	VGA+DVI	VGA+DVI	VGA+DVI	VGA+DVI	VGA+DVI	VGA+DVI+HDMI
Resolution	800×600	800×600	800×600	800×600	1280×1024	1366×768
Viewing angle	50°/70°	50°/70°	80°/60°	60°/70°	80°/85°	60°/70°
Touch screen	SAW/Resistive	SAW/Resistive	SAW/Resistive	SAW/Resistive	SAW/Resistive	SAW/Resistive

	COT185-APK02	COT215-APK02	COT220-APK03	COT236-APK03	COT270-APK02
Size	18.5"	21.5"	22"	23.6"	27"
Ratio	16:10	16:9	16:10	16:9	16:9
Brightness	250	250	250	250	300
Contrast	1000:1	3000:1	1000:1	1000:1	3000:1
Input	VGA+DVI	VGA+DVI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI
Resolution	1366×768	1920×1080	1680×1050	1920×1080	1920×1080
Viewing angle	80°/85°	89°/89°	80°/85°	89°/89°	89°/89°
Touch screen	SAW	SAW	SAW	SAW	SAW

Other PCAP Touch Monitor Parameters

Size	7"	8"	10.1"	10.4"	12.1"	13.3"	15"	15.6"	17"	18.5"
Part Number	COT070-CFK02	COT080-CFF02	COT101-CFK03	COT104-CFF03	COT121-CFF03	COT133-CFK03	COT150-CFF03	COT156-CFK03	COT170-CFF03	COT185-CFK03
Ratio	16:9	4:3	16:9	4:3	4:3	16:9	4:3	16:9	5:4	16:9
Brightness	300	250	300	400	400	300	250	220	250	250
Contrast	500:1	500:1	800:1	700:1	600:1	800:1	500:1	800:1	1000:1	1000:1
Input	VGA+DVI/HDMI	VGA+DVI/HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI
Resolution	800*400	800*600	1280*800	800*600	800*600	1920*1080	1024*768	1920*1080	1280*1024	1366*768
Viewing angle	70°/70°	70°/70°	80°/89°	80°/60°	60°/70°	85°/85°	80°/80°	85°/85°	80°/85°	85°/80°

Size	19"	19.5"	21.5"	23.6"	23.8"	27"	32"	43"	55"	65"
Part Number	COT190-CFF03	COT195-CFK03	COT215-CFK03	COT236-CFK03	COT238-CFK03	COT270-CFK03	COT320-CFK03	COT430-CFK03	COT550-CFK03	COT650-CFK03
Ratio	5:4	16:9	16:9	16:9	16:9	16:9	16:9	16:9	16:9	16:9
Brightness	250	250	250	250	250	300	400	400	450	400
Contrast	1000:1	1000:1	3000:1	1000:1	1000:1	3000:1	3000:1	1200:1	1200:1	1200:1
Input	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI
Resolution	1280*1024	1600*900	1920*1080	1920*1080	1920*1080	1920*1080	1920*1080	1920*1080	1920*1080	1920*1080
Viewing angle	80°/85°	85°/80°	89°/89°	89°/89°	89°/89°	89°/89°	89°/89°	89°/89°	89°/89°	89°/89°

Other Touch ScreenPCAP Touch Screen
-5" - 110",Support Custom made
-5 /10 Points touch
-USB /RS232 /IIC interface
-EETI /ILITEL /SIS Controller Board
-1.8/2/3/4/6/8mm Tempered Touch Glass
-Outdoor Industrial Waterproof Vandalproof
-G+G /Nano Ag Metal ,Support custom-make
-CE, FCC, RoHS,ISO9001,ISO14001
-Windows /Linux /Android /Imac OS / Raspberry pi
-OK To add Normal Glass on the Top to Touch
SAW Touch Screen
-7- 32'',Custom-Make Supported
-Vandalproof,Waterproof,Dustproof,Anti-Glare
-3/4/6mm Tempered Touch Glass
-5V /12V Voltage,USB+RS232 Interface
-Windows /Linux /Android /Imac /Raspberry pi OS
-Plug and play ,3 Years Warranty
-ELO/3M/GeneralTouch/KeeTouch/ETWO/OneTouch Driver OK
Company ProfileOur Factory
• Dongguan CJTouch Electronic Co., Ltd, located in Dongguan, the city famous withits advanced manufacturing, was built on 2009.• It's a high-tech enterprise mainly specialized in researching, manufacturing,selling and repairing SAW,IR and touch whole products and in providing touch solutions.• Products : SAW and IR touch screen and touch monitor, all in one PC and touch kiosk.• Products to be used in : Gaming & gambling, POS, Medical equipment, Kiosk field and etc .• Accept OEM/ODM business.• Producing Capacity : 150 Thousand sets / yearOur Advantages
-> 10 Years Professional Chinese Factory-Cheaper Labor & Low Cost Diverse Materials- Plenty of Stocks for Different Size,MOQ is 1 pcs- Short Lead Time( <<> 2 days for Regular Type )- DHL/UPS/Fedex/TNT/EMS ect Fast Offical Safety- 1 Years Warranty for Touchscreen- Strong Design Team to Custom made Your Unique Solution- CE,FCC,RoHS,ISO9001,ISO14001 ect Certifications- 7*24 Hours After-Sale Service Engineer Team Our Team
Our Customer
116 Countries,Top 10 Customer :
-Brazil
-Australia
-India
-Russian
-Argentina
-Indonesia
-Canada
-Spain
-Saudi Arabia
-KZ(Kazakhstan)
What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.
Single & Multi-touch screens (custom sizes available)
Single & Multi-touch monitors (custom sizes and functions available)
All-in-one computers
ODM/OEM services
SAW ( Surface Acoustic Wave) Touch ScreenSAW ( Surface Acoustic Wave) Touch MonitorIR ( Infrared) Touch ScreenIR ( Infrared) Touch MonitorAll in one touch PCInteractive Kiosk-SAW / IR / Capacitive / Resistive Touch Screen
-PCAP Nano Touch Foil / Touch Film
-Open frame / Desktop LCD Monitor
-ELO / 3M Compatible Touch Monitors
-Industrial / Outdoor / Waterproof Solution
-POS Touch All in one Computer (AIO)
-Indoor /Outdoor Advertising Signage
-Electronic Education Smart White board
-Self-service / ATM / Information Kiosk etc
Application fieldGaming / casino / ATM Kiosk / Hotle / KTV / TV
Industrial / Public inquiry / Coffee / Bar
Entertainment / Hospital / Restaruant / Advertising
Transport and Ticketing / Banking
Hospitality / Meeting / Teaching
Customizsed Solutions
Business Institutions: Market ,Store ,Hotel , Restaurant
Financial Institutions: Bank , Insurance ,Government
Public Services: Hospital , School , Telecom , Post Office
Public Places: Transportation , Exhibition , Museum
Real Eatates: Apartment , Villa , Business Building
Entertainment Places: Cinema , Gym , Nightclub , Golf
Daily life place: Cafe , Station , Business hall,
Customized Solutions & Applications etcPacking

---
